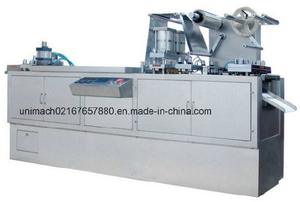

Dpp-120 Automatic Blister Packaging Machine
1.It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2.Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requirement.
3.The machine adopts separation sectional combination: PVC forming, Feeding, Heating sealing for one section; Tropical cold aluminum forming, Heating sealing and cutting for another one section for separately packaging.
4.It adopts photoelectrical controlling system to make PVC, PTP, be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
5.It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade
6.The machine is suitable for packaging of capsule, tablet, coating pills, syringes, medical instruments electronics and etc.
Technical Specifications:
| Model | DPP-120 |
| Punch frequency | 10-35tims/min |
| Production capacity | 2400plates/hour |
| Max. forming area and depth | 90*115*26(mm) |
| Standard stroke range | 20-80mm( can be designed as per user's required) |
| Standard plate size | 80x57mm( can be designed as per user's required) |
| Air pressure | 0.6-0.8Mpa |
| Power supply | 380V/220V 50Hz 3.0Kw |
| Main motor | 0.75Kw |
| PVC hard film | 0.15-0.5*120(mm) |
| PTP aluminum film | 0.02-0.035*1200(mm) |
| Dialysis paper | 50-100g*120(mm) |
| Mould cooling | Tap water or recycling water |
| Overall dimension | 1500*600*1200 (mm) |
| Weight | 450kg |
| Noise index | <75dBA |
Samples:
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
