Feature and advantage

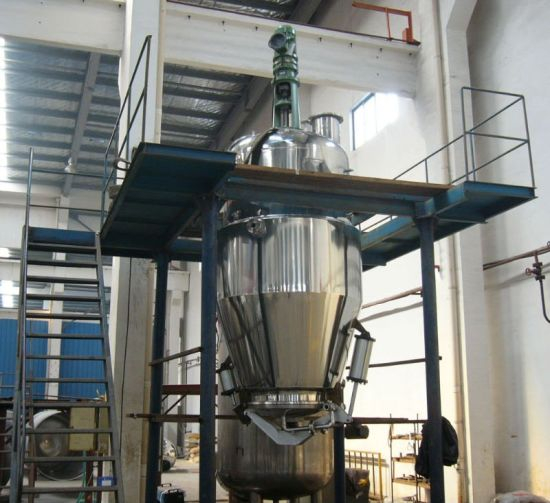

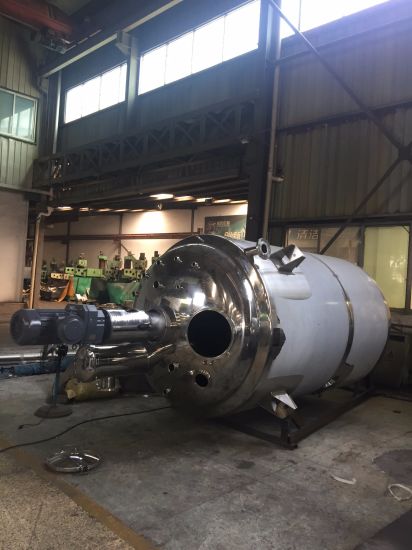

1. Dynamic extracting tank with stirring motor
2. Better extracting effect than static extractor
3. Short extracting time
4. High extracting content
5. Impeller or paddle blade and with motor
Applications
The extracting tank can be applied to plant/herbal extraction in Chinese Traditional Medicine, foodstuff, chemical industry and so on.
The equipment can be used in Chinese Traditional Medicine, foodstuff and chemical industry. It can be applied to various processes as follows: Drug-decocting under normal pressure or low pressure, digeratur, thermal refluxing, forced circulation, infiltration, extraction of aromatic oil, reclaim of organic solvent and etc. This device features higher efficiency, time-saving quality and high content of liquid drug in the course of extraction. The equipment employs the types of impeller blade and paddle blade as its agitation system. Using excellent materials, the device is widely applied to pharmacy, foodstuff and chemical industry.
| Model | unit | TQ0.5 | TQ1.0 | TQ2.0 | TQ3.0 | TQ4.0 | TQ5.0 | TQ6.0 | TQ8.0 |
| Total volume | L | 560 | 1300 | 2300 | 3600 | 4400 | 5560 | 6500 | 8900 |
| design pressure inside tank | Mpa | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| design pressure inside jacket | Mpa | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| heating area | m2 | 2.1 | 4 | 5 | 6.8 | 7.3 | 8.5 | 9.5 | 11 |
| condensing area | m2 | 3.0 | 5.0 | 5.0 | 8.0 | 8.0 | 10.0 | 10.0 | 12.0 |
| cooling area | m2 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.5 | 1.5 | 1.5 |
| filtering area | m2 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.50 | 0.50 | 0.50 |
| residue discharging door | mm | 600 | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1200 |
| manhole | mm | 300 | 300 | 400 | 400 | 450 | 450 | 450 | 500 |
| mixing power | kw | 1.5 | 3.0 | 4.0 | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 |
| mixing speed | rpm | 63 | 63 | 63 | 63 | 63 | 63 | 63 | 63 |
| steam consumption | kg/h | 100 | 180 | 225 | 300 | 330 | 380 | 420 | 495 |
| cooling water consumption | T/h | 2.6 | 4.2 | 4.2 | 6.8 | 6.8 | 8.5 | 8.5 | 10 |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
