FGF-250
1

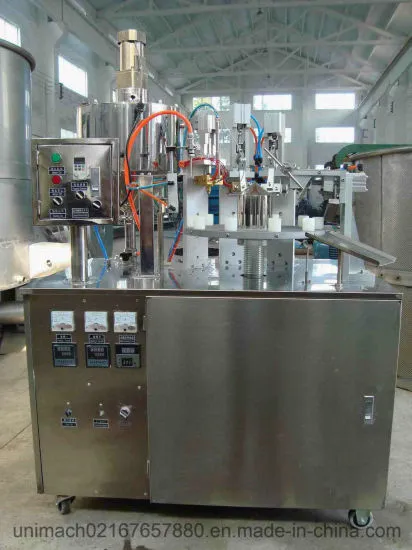

FGF-250 Semi-Automatic Plastic and Laminated Tube Filling and Sealing Machine
General introduction of the machine :
This machine can be used for both plastic and laminated tubes.
This equipment is widely used in industry of toothpaste, cosmetic,pharmaceutical and food etc., it is applicable for various plastic tube and plastic-laminated-tube. It can fill-pack all kinds of cream, latex, lotion, oil and water etc. Before you use our equipment, read this user manual carefully, so that you can make a good use of our products.
This equipment can automatically fill, seal, stamp batch numbers and exit tubes(with 8 tube position) . Inner-heating and outside -heating method is adopted in the heating section, which can blow hot-wind to the tube tail-ends inner wall. The parts touched with material adopt 304 stainless steel, which can proof acid, alkali and corrosion. All the channels can be unloaded fast and agilely. The material-valve can be rotated, it can be cleanout easily, so there's no place for the dirty. Fixing organization can fix position precisely and firmly. The position-turning part can change speed by using different-frequency. Customers can adjust the working speed themselves.
Several devices such as heatproof system( to keep steady heating temp. of the material) , mixing parts, and etc can be chosen according to the customer's demand.
Characteristic:
The parts contacted with material adopt 316L stainless steel
The link parts are easy to take-down and washing
Uses high quality pneumatic elements
II. Basic technical specifications of the machine
1.Power supply: ~220V±10%,50Hz
2.Power Consumption:400W×2(sealing tube outer heating)
3.Air source(MPa):air pressure>0.6-0.8MPa,less than 30dm3/min,
4.Filling capacity(ml): 10-200ml.
5.Speed: 20-30Tubes/min
6.Measurement precision: ±1%
7.Dimension(mm): 1230*700*1400
8.Weight of the machine (kg):600kg
Components of the machine
| No | Name | Qty | Function and application |
| 1 | Storage tank | 1 | Material storage |
| 2 | Plunger pump | 1 | Filling |
| 3 | Cylinder and dosing system | 1 | Adjust the pump dosage |
| 4 | Internal-heating system | 1 | Heating from inner side |
| 5 | Filling heads lifting system | 1 | Assure filling heads insert the tube and fill |
| 6 | Exterior heating system | 1 | Heating from outside |
| 7 | Sealing and batching system | 1 | Sealing,batching and printing date |
| 8 | Groove wheel degree-dividing system | 1 | To achieve tube turn round by intermission system |
| 9 | End cutting system | 1 | Cut the extra parts of sealing |
| 10 | Ejection device | 1 | Eject the tubes to achieve automatic dropping |
| 11 | Electric control system | Control the mechanical and pneumatic actions | |
| 12 | Operation switch | Control the filling quantity | |
| 13 | Distributor cam | 1 | Control the action steps |
| 14 | Worm wheel reducer | 1 | Speed reduce |
| 15 | Two position three way electromagnetic valve | 1 | Control the filling valve to achieve filling |
| 16 | Directional control valve | 3 | Direction control |
Samples:
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
