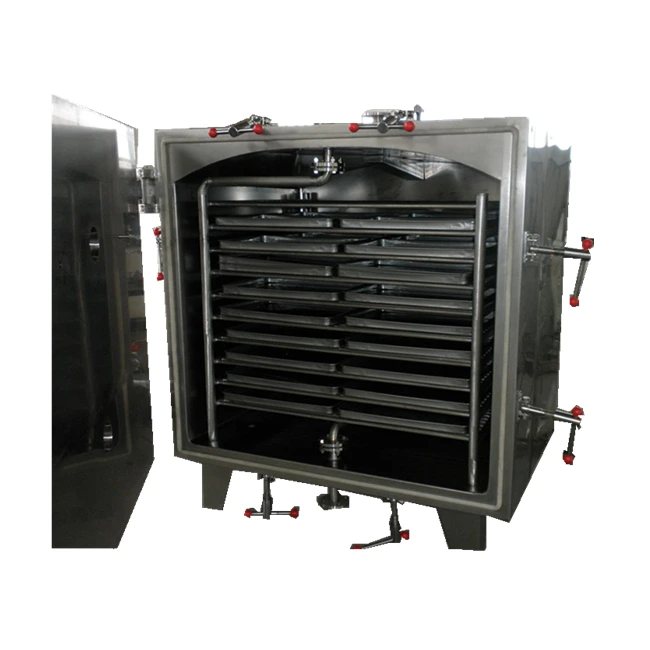

FZG Series Vacuum Dryer

Quantity:

Applications

It is suitable for drying heat sensitive raw materials that can decompose

or polymerize or deteriorate at high temperature. It is widely used in pharmaceutical, chemical, foodstuff and electronic industries.


Principles

It is well known that vacuum drying is to put raw material under the state of vacuum for heating and drying.If use vacuum to pump air and humidity out, the dry speed will be faster.

Note: If use condenser, the solvent in raw material can be recovered. If the solvent is water, condenser might be canceled and the investment and every could be saved.


Features

Under the condition of vacuum, the boiling point of raw material will decrease and make the evaporation efficiency higher. Therefore for a certain amount of heat transfer, the conducting area of dryer can be saved.

The heat source for evaporation may be low pressure steam or surplus heat steam.

The heat loss is less.

Before drying, the treatment of disinfection may be carried out. During the period of drying, there is no impurity material mixed. It is in conformity with the requirement of GMP.

It belongs to static dryer. So the shape of raw material to be dried should not be destroyed.


Technical specifications

Model FZG-15
interior size of chamber(mm) 1500×1400×1220
exterior size of chamber(mm) 1513×1924×2060
layers of drying shelf 8
interval of drying shelf(mm) 122
size of drying tray(mm) 640×460×45
number of
drying tray 32
permitted pressure inside the pipe of drying shelf ≤0.784
temperature inside chamber (ºC) 35~150
vacuum level inside chamber without load(MPa) -0.1
weight of drying chamber(kg) 2100



Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G

FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
