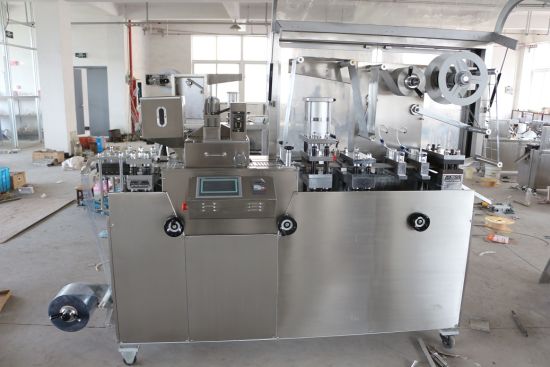

Flat-Plate Automatic Alu-PVC Blister Packing Machine



It is the latest product designed for dosage-made room of hospital, middle and small sized pharmaceutical factory, health care factory. It is adopted with micro-computer program controller, touch panel operation, frequency governor, convenience of operation, novel structure, full purpose function, adjustable edition, long durability, it is the best packaging equipment at present, and got well popularity. The product passed the provincial science and technology appraisal.


1.The part of active transmission is adopted with cycloid wheel reducer casing with long life, lower sound, and stable working.
2. Adjustable stroke, the size of edition can be changed freely, suitable for various different specifications.
3.Flat plate structure, every kind of shape can be packed, such as: Elliptic shape, square shape, triangle shape etc.

Flat-Plate Automatic Alu-PVC Blister Packing Machine
Flat-Plate Automatic Alu-PVC Blister Packing Machine

Flat-Plate Automatic Alu-PVC Blister Packing Machine

Cutting Frequency (times/min) 6-50
Capacity(pcs/h) 20,000-11,0000
Max shaping areas and depth (mm) 130X130X26(standard depth 14mm)
Stroke (mm) 40-140
(can be lengthened to 160mm according to user's requirements)
Standard Plate(mm) 80X57(can be manufactured as user's requirements)
Air Pressure(MPa) 0.4-0.6,≥0.15m3/min
Total power 380V/220V 50Hz, 3.6kw
Main motor power(kw) 0.75
PVC hard pieces (mm) 0.25-0.5X140
PTP Aluminum Foil (mm) 0.02-0.035X140
Dialysis Paper (mm) 50-100gX140
Mould Cooling Tap water or circulating water
Overall Dimensions (mm) and weight 2300X560X1410(LXWXH),750kg

Packaging & Shipping

 1.Nomally shipping steps:


2.Our packing and shipping:


Our Services


     Pre-Sales Service:


         * Inquiry and consulting support.


         *Quickly reaction.


          *Factory inspection available anytime.



      After-Sales Service:


         *Prompt technical support


        *Engineers available to service machinery overseas


        *Installation &commissioning,good training for customers.



Our customer






Company Information



 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.


Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.


Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.


Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.


Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.


Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
