Fluidized Bed Dryer Granulator Coator Machine

Quantity:

Fluidized Bed Dryer Granulator Coator Machine
Features of equipment

1. Because of powder Granulating, the flow property is improved and the dust is reduced;
2. Because of powder Granulating, its solving property is improved;
3. The mixing, Granulating and drying can be completed in one step inside the machine;
4. The operation of equipment is safe because the antistatic filtering cloth is adapted;
5. The operation personnel can not be damaged if explosion is taken place because there is releasing hole;
6. The equipment has no dead corner. Therefore the loading and unloading are quick and light and clean. It can meet the requirements of GMP.

Scope of applications

Pharmaceutical industry: Tablet capsule, low sugar or no sugar granule of Chinese traditional medicine.
Foodstuff: Cocoa, coffee, milk powder, juice of granulate, flavoring and so on.
Other industries: Pesticide, feed, chemical fertilizer, pigment, dyestuff and so on.
Drying: Powder or granule state of wet material
Coating: Protection layer, color, controlled release, film, or bowels solved coating of granules and pills.

Principles

The powder granule the container (fluidization bed) appear the state of fluidization, It is pre-heated and mixed with clean and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container. It makes the some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

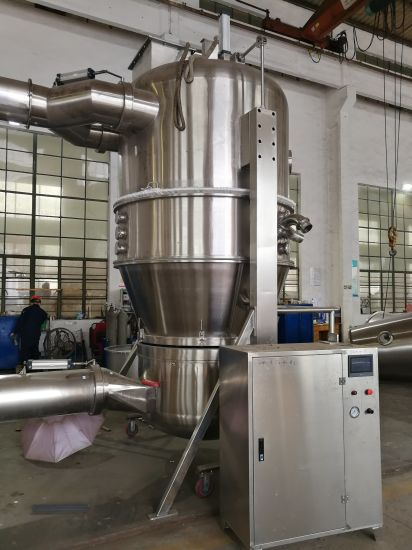

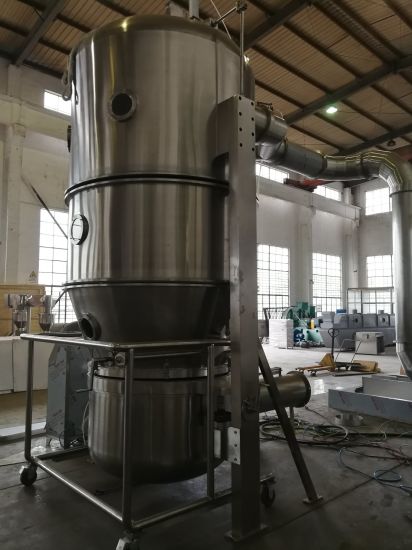

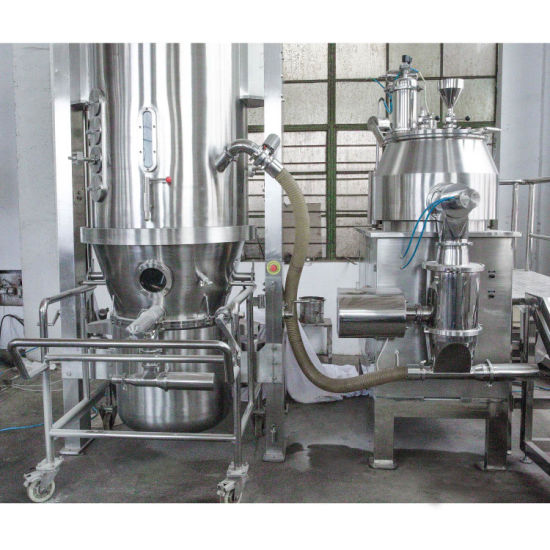

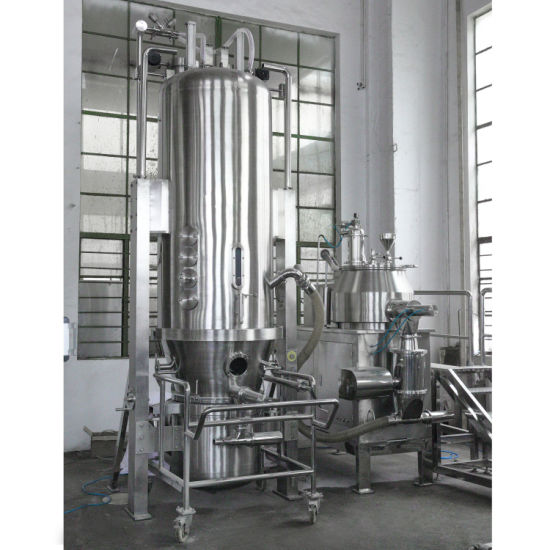

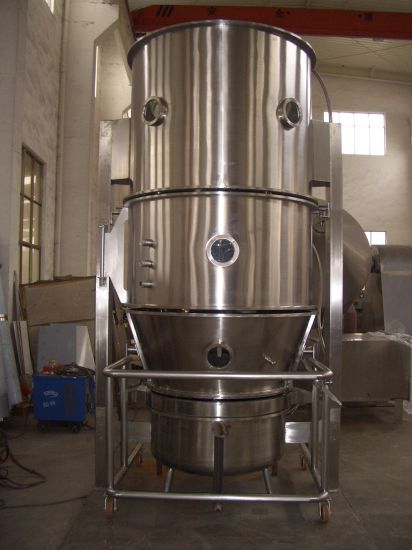

Fluidized Bed Dryer Granulator Coator Machine
Fluidized Bed Dryer Granulator Coator Machine
Fluidized Bed Dryer Granulator Coator Machine

Item Unit model
FL-300
Container Volume L 1000
Diameter MM 1600
Output capacity Min KG/batch 150
Max KG/batch 450
Fan Capacity m3/H 7000
Pressure MM H2O 950
Power KW 30
Steam expenditure KG/H 366
Compressed air expenditure m3/min 1.5
Weight of the main body KG 1800
Steam pressure MPA 0.3-0.6
Temperature ºC Adjustable at the range from
                       room temperature to 120ºC
Working time MIN Decided in accordance with the
                      properties of raw materials
Field % ≥99
Noise DB(A) ≤75Db(When installation, main machine
                               is separated from fan)
Size (L×W×H) M 2.8×2.0x4.0m


Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW

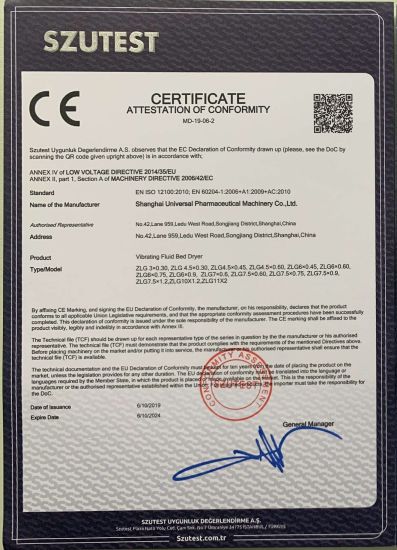

Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G



FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
