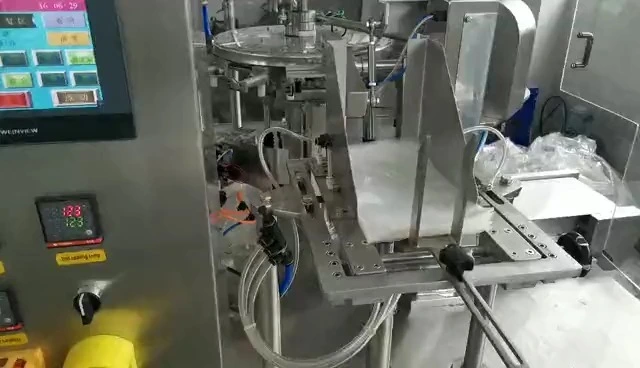

Fully-Automatic Weighting Packing Machine
Main feature:
1) Import PLC contorl syetem, simple-operating, visual touch screw.
2) Servo film feeding system, correct register sealing and cutting positions adopt automatic correction device, high automation.
3 Intelligent temperature controller is used, correct temperature control, ensure nice, smooth seal.
4) Perfect automatic alarming protective function, reduce the consumption up to the lowest.
5) When the machine is combined with metering equipments, full packaging process including automatic feeding, metering, bag filling, date printing and automatic counting is completed.
6) Type of bag making: Can be coustomerd, like: Pillow bags, punched hanging bags.
Application:
Suitable for automatic packaging particle materials like all kinds of food, potato chips, shrimp, sweets, chocolate, biscuits, peanuts, nuts, rice, grain, seeds, pistachio, coffee, beans, lima beans, jelly, frozen food, chicken essence, suger, salt, etc.
| Automatic weighting packing machine | DXD-420C | DXD-520C | DXD-620C | |
| Packing speed (s/min) | 15-70bags/min | 15-70bags/min | 15-60bags/min | |
| Bag-making size (mm) | (L)80-300mm(W)80-200mm | (L)80-350mm(W)80-250mm | (L)80-400mm(W)80-280mm | |
| Filling range (g) | 10-2000g | 10-3000g | 50-5000g | |
| Packing meterials | OPP/CPP PET/PE PET-AL/PE etc. | OPP/CPP PET/PE PET-AL/PE etc. | OPP/CPP PET/PE PET-AL/PE etc. | |
| Film width (mm) | 180-420mm | 180-520mm | 180-600mm | |
| Film thickness | 0.04-0.08mm | 0.04-0.08mm | 0.04-0.10mm | |
| Air consumption | 0.36m3/min 0.6Mpa | 0.36m3/min 0.6Mpa | 0.6m3/min 0.6Mpa | |
| Power supply | AC220V/380V 50/60Hz 3.5KW | AC220V/380V 50/60Hz 3.5KW | AC220V/380V 50/60Hz 4.5KW | |
| Machine dimension (mm) | L*W*H=1750*1050*1500-2000 | L*W*H=1750*1350*1650-2000 | L*W*H=2150*1400*1750-2000 | |
| Machine weight (kg) | 500Kg | 650kg | 800kg |
Main feature:
1) Import PLC contorl syetem, simple-operating, visual touch screw.
2) Servo film feeding system, correct register sealing and cutting positions adopt automatic correction device, high automation.
3 Intelligent temperature controller is used, correct temperature control, ensure nice, smooth seal.
4) Perfect automatic alarming protective function, reduce the consumption up to the lowest.
5) When the machine is combined with metering equipments, full packaging process including automatic feeding, metering, bag filling, date printing and automatic counting is completed.
6) Type of bag making: Can be coustomerd, like: Pillow bags, punched hanging bags.
Application:
Suitable for automatic packaging particle materials like all kinds of food, potato chips, shrimp, sweets, chocolate, biscuits, peanuts, nuts, rice, grain, seeds, pistachio, coffee, beans, lima beans, jelly, frozen food, chicken essence, suger, salt, etc.
| Automatic weighting packing machine | DXD-420C | DXD-520C | DXD-620C | |
| Packing speed (s/min) | 15-70bags/min | 15-70bags/min | 15-60bags/min | |
| Bag-making size (mm) | (L)80-300mm(W)80-200mm | (L)80-350mm(W)80-250mm | (L)80-400mm(W)80-280mm | |
| Filling range (g) | 10-2000g | 10-3000g | 50-5000g | |
| Packing meterials | OPP/CPP PET/PE PET-AL/PE etc. | OPP/CPP PET/PE PET-AL/PE etc. | OPP/CPP PET/PE PET-AL/PE etc. | |
| Film width (mm) | 180-420mm | 180-520mm | 180-600mm | |
| Film thickness | 0.04-0.08mm | 0.04-0.08mm | 0.04-0.10mm | |
| Air consumption | 0.36m3/min 0.6Mpa | 0.36m3/min 0.6Mpa | 0.6m3/min 0.6Mpa | |
| Power supply | AC220V/380V 50/60Hz 3.5KW | AC220V/380V 50/60Hz 3.5KW | AC220V/380V 50/60Hz 4.5KW | |
| Machine dimension (mm) | L*W*H=1750*1050*1500-2000 | L*W*H=1750*1350*1650-2000 | L*W*H=2150*1400*1750-2000 | |
| Machine weight (kg) | 500Kg | 650kg | 800kg |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
