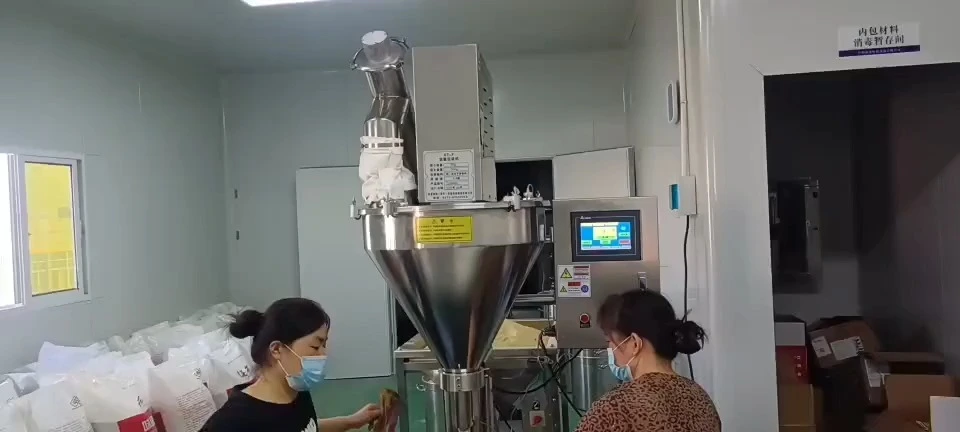

Semi automatic vertical filling machine
characteristic:
1. Suitable for quantitative filling of various bottles, cans, and bags;
2. Photoelectric induction feeding, or optional foot switch control feeding;
3. Using a combination of screw and electronic weighing technology to control measurement;
4. Errors caused by changes in material density and level can be automatically tracked and corrected;
5. The calibration value of the feedback electronic scale can be adjusted to meet the needs of various accuracies;
6. The speed of the filling motor can be adjusted to meet the requirements of different characteristics of powder materials;
7. By replacing screw accessories, the same equipment can meet measurement requirements of different specifications;
8. The mixing motor adopts a domestically produced noise free motor;
9. Automatic error correction, weight deviation alarm;
10. Easy to use, small footprint.
characteristic:
1. Suitable for quantitative filling of various bottles, cans, and bags;
2. Photoelectric induction feeding, or optional foot switch control feeding;
3. Using a combination of screw and electronic weighing technology to control measurement;
4. Errors caused by changes in material density and level can be automatically tracked and corrected;
5. The calibration value of the feedback electronic scale can be adjusted to meet the needs of various accuracies;
6. The speed of the filling motor can be adjusted to meet the requirements of different characteristics of powder materials;
7. By replacing screw accessories, the same equipment can meet measurement requirements of different specifications;
8. The mixing motor adopts a domestically produced noise free motor;
9. Automatic error correction, weight deviation alarm;
10. Easy to use, small footprint.
Technical Parameter：
model | UN-F2 |
Measuring range | 1-100 grams |
measurement error | ±0.3% |
Speed | 0-60 times/minute |
Operation interface | LCD Touch Screen |
control system | PLC control |
Warehouse style | All Stainless Steel |
Dimensions (cm) | (L)80×(W)80×(H)196 |
Power Supply and Power | AC380V50HZ·1100W |
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
