Application:

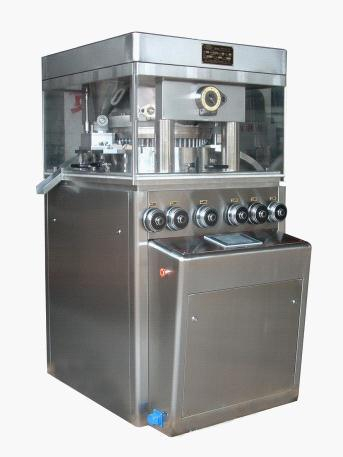

This machine is one kind of tablet press machine, of granular materials into tablets. It is mainly used to press hard-forming materials into tablets in pharmaceutical industry and also the chemical, food, electronic industries.
Feature:
1. This machine adopts a fully enclosed structure with the operation compartment isolated compartment isolated from the outside. Ensuring the cleanness in the tablet compressing area without creation of cross contamination with the outside. The compressing compartment is wholly made of stainless steel, which is in compliance with the GMP requirement on the production of pharmaceuticals.
2. The surface of turret is with chrome playing to avoid the wearing of turret.
3. The machine adopts the adjustment of speed by means of frequency inversion. The motor is connected with under plate to avoid the motor shaking when working.
4. Fully automatic lubrication system with interval type, micro flow and quantitative, to lubricate the upper lower tracks and the heads of punches and reduce the wearing of these parts.
5. An overload protection unit is equipped in the machine to avoid the damage of the punches and apparatus. When overload occurs, the machine stops automatically.
6. Different kinds of impellers for force feeder, to meet the feeding requirement of different raw materials.
| Number of punches and dies(sets) | 35 sets | 43sets | 51 sets | 55sets |
| Model of P/D(mm) | IPT25.4mm | IPT25.4mm | IPT19mm | IPT19mm |
| Outer diameter of middle die(mm) | 38.1mm | 30.16mm | 24mm | 22mm |
| Max. Pre-pressing compression pressure(kn) | 18kn | 18kn | 18kn | 18kn |
| Max. main compression pressure(kn) | 100kn | 100kn | 80kn | 80kn |
| Max. tablet diameter(mm) | 25mm | 18mm | 13mm | 11mm |
| Max. filling depth(mm) | 20mm | 18mm | 15mm | 15mm |
| Max. speed of rotary table(r/min) | 25r/min | 40r/min | 45r/min | 50r/min |
| Max. production capacity(pcs/h) | 105,000pcs/h | 206,000 pcs/h | 275,000 pcs/h | 330,000 pcs/h |
| Main motor | 7.5kw/1430r/min/380v/50Hz | 5.5kw/1430r/min/380v/50Hz | ||
| Overall Dimensions | 950x1300x1850 | |||
| Net weight(kg) | 2500Kg | |||
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
