Product Description

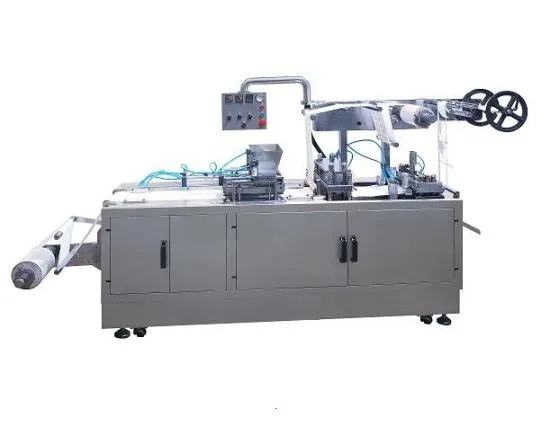

DPB-160 model heat wraps packing machine
This machine is specially designed for packing various heat wraps products.
This product is a new packing machine designed by our company; It has reached domestic leading level. It is also suitable for capsule, tablet, big honey pill, candy, liquid, paste, syringe as well as irregular shape Al-plastic, paper-plastic composite and Al-Al sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. This machine adopts micro-computer PLC, frequency converter, high automation; It is an ideal heat wraps packing equipment. The product passed the provincial science and technology appraisal.
Feature
1. Hot-sealing and cutting etc all adopt gear mandrel orientation, each can move freely in the mandrel when rotate the hand wheel, and it equipped with a staff gauge, easy to adjust and can be performed quickly and accurately.
2. Manipulator towing adopted culms double pendulum device and increased traction adjustable range (it can get to as long as 180mm), which can fit for blister packing of different sizes. All the movement of heating, forming, upper and lower net veins pressing, air cylinder pressing, feeding, lot number printing and cutting can be done very simple, automatically and accurately.
3. Positive pressure forming matched with mechanical punch ensures well blister forming, and can be collocate with special automatic feeder to fit for certain packing such as ampoule, vial, syringe, big honey pill, medical appliance or other special shapes.
4. Main transmission part adopts parallel axis and bevel wheel speed reducer. Forming, heat-sealing and impressing moulds adopt bolt orientating which leads to precise orientation, easy to change moulds and material saving.
5. Detachable design makes the machine easy to be carried and installed according to user's requirement.
| Cutting Frequency (Times/min) | 6-20 |
| Max. Areas | 240× 150 |
| TravelRange(mm) | 40-160 (Can be lengthened to 180mm as user' s requirements) |
| Air Pressure (Mpa) | 0.4-0.6 |
| Air Supply | ≥ 0.3m3 /min |
| Total Power | 380V/220V 50Hz 4.5kw |
| Main Motor Power (kw) | 1.5 |
| Mould Cooling | Tap Water Or Circulating Water |
| Overall Dimensions (mm) | 3000× 730× 1600 (L× W× H) |
| Weight (kg) | 1600 |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
