Main Application:
The machine unit is suitable for such fields as pharmaceutical, food, chemical etc. With no limit of viscosity, hardness, and fiber content of the material, it is functioned with air cooling, screen-free, etc. It has good pulverization effect to any material, especially suitable for fiberous herb medicines or oily materials.
Working Principle:

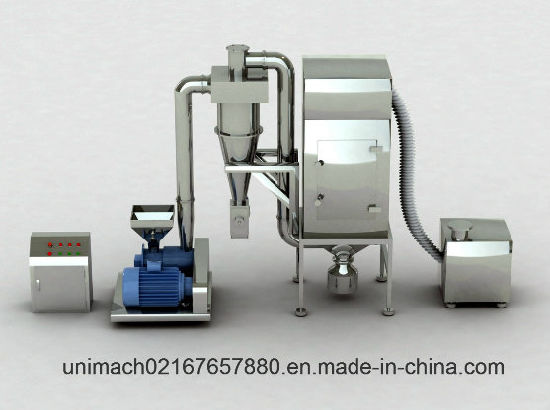

The machine unit is made up of hopper, classifier wheel, stepped gear, pulverizing knife, gear ring, pulverizing motor, discharging port, fan blade, collecting box, vacuum box etc., The material is fed into the pulverizing room through the charging bucket, and pulverized by knife with high rotation. The fineness of the material is controlled by the adjustment of the gap between stepped gear and stepped pan. (The well processed material is suctioned from the pulverizing room to the hoppocket in the aggregating box by fan blade with high rotation, while the half-processed material will remain to be pulverized in the pulverizing room. ) The dust in the hop pocket is collected by the dust collection box. The machine unit is designed according to GMP standard. It is featured with simple structure, convenient operation and cleaning, low noise, and high output. The machine is made of stainless steel with high quality. There is no dust during the pulverizing.
| Model | Production Capacity | Feeding Size | Crushing Fineness | Crushing motor | Dust collecting motor | Output motor | overall dimension | weight |
|---|---|---|---|---|---|---|---|---|
| ZYF-130A | 5-30kg/h | ≤5mm | 20-200mesh | 1.5kw | 1.5kw | 0.75w | 1500*650*1500mm | 250kg |
| ZYF-300A | 30-300kg/h | ≤10mm | 20-200mesh | 11kw | 3kw | 0.75kw | 4000*850*2350mm | 850kg |
| ZYF-500A | 60-500kg/h | ≤12mm | 20-200mesh | 22kw | 5.5kw | 0.75kw | 4900*950*2350mm | 1200kg |
| ZYF-600A | 80-800kg/h | ≤15mm | 20-200mesh | 37kw | 11kw | 0.75kw | 5500*950*2500mm | 2500kg |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
