High Efficiency 6cbm Extraction Tank


                                                     6CBM  High Efficiency Extraction tank
The extraction tank is the pharmaceutical and chemical equipment commonly used especially for leaching leaching in vegetable product components contained in the extract. The tank has a tank structure, the axial position of the spiral propeller device or rotating propeller, and the axis of rotation of the disc is connected with the outside of the tank, which is characterized by continuous countercurrent leaching with a group of inclined extraction tank between them, the outlet is connected with the inlet is a communicating device, a single tank is provided with a material inlet end, with lower residual liquid outlet, the upper part of the high-end is provided with a liquid inlet or outlet, the lower part of a discharge port.

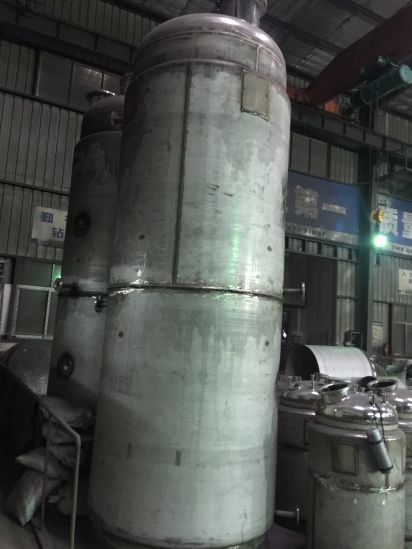

High Efficiency 6cbm Extraction Tank

Specifications\Model DQ-Z-1.0 DQ-Z-2.0 DQ-Z-3.0 DQ-Z-6.0 DQ-Z-8.0 DQ-Z-10
Total volume L 1200 2300 3300 6300 8600 11000
Jacket design pressure Mpa 0.33
Jacket design temperature °C 146
Compressed air Mpa 0.6-0.7
Manhole diameter mm 400 400 400 500 500 500
Condenser area m2 3.0 5.0 6.5 9.5 12.5 15.0
Cooling area m2 0.5 1.0 1.2 2.0 2.5 3.0
Filtration area m2 0.2 0.2 0.25 0.3 0.4 0.5
Steam consumption Kg/h 245 305 345 645 720 850
Total weight Kg 1080 1620 2400 3025 4030 6500

Packaging & Shipping

 1.Nomally shipping steps:


2.Our packing and shipping:


Our Services


     Pre-Sales Service:


         * Inquiry and consulting support.


         *Quickly reaction.


          *Factory inspection available anytime.



      After-Sales Service:


         *Prompt technical support


        *Engineers available to service machinery overseas


        *Installation &commissioning,good training for customers.



Our customer






Company Information




 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.


Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.


Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.


Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.


Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.


Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
