High Efficiency High-Speed Blister Packing Machine
DPK-260H2 HIGH-SPEED BLISTER PACKING MACHINE
Technical parameters:
| Model | DPK-260H2 HIGH-SPEED BLISTER PACKING MACHINE |
| Punching frequency | Alu-Pvc 25-60times/min Alu-Alu 20-30times/min |
| Capacity | Alu-Pvc6000-14000 blisters/h Alu-Alu:4800-7200 blisters/h |
| Max. Forming depth | 25mm |
| Range of stroke | 30-120 mm made to order140mm |
| Power | 380V 50HZ 8.5KW |
| PVC hard pieces | 0.25-0.5×260 mm |
| Dialyzing paper | 50-100g×260 mm |
| PTP aluminum foil | 0.02-0.035 ×260 mm |
| Cooling system | Cooling water(provide for customer) or cold circulating water (optional) |
| External dimension | 4460×760×1620mm |
| Weight | 1850kg |
Component configuration list:
| No. | Brand | Name | Model | unnit | Qty | Mark |
| 1 | CHINT | Circuit breaker | DZ47-3P-C25 | set | 1 | |
| 2 | CHINT | Circuit breaker | DZ47-1P-C10 | set | 5 | |
| 3 | CHINT | Circuit breaker | DZ47-2P-C10 | set | 1 | |
| 4 | CHINT | Intermediate relay + base | / | set | 8 | |
| 5 | Mibo | Switch power supply | S-100-24V | set | 1 | |
| 6 | Hechuan | Servo motor | set | 1 | ||
| 7 | Hechuan | Servo driver | set | 1 | ||
| 8 | Hechuan | Servo plug-in unit | set | 1 | ||
| 9 | Hechuan | Frequency converter | C380-2.2kw | set | 1 | |
| 10 | OMRON | Photoelectric switch | E3Z-D61 | set | 1 | |
| 11 | Hechuan | PLC | CP1H-X40DT-D | set | 1 | |
| 12 | Hechuan | Extension module | LX1N-60MT | set | 2 | |
| 13 | Hechuan | Communication port | TX1N-485-BD | set | 1 | |
| 14 | Hechuan | Communication port | TX1N-232-BD | set | 1 | |
| 15 | Hechuan | Temperature control module | SAT100-00011 | set | 1 | |
| 16 | OMRON | Encoder | E6B2-CWZ6C-1000P/R | set | 1 | |
| 17 | Hechuan | Touch screen | TL-1370 | set | 1 | |
| 18 | Xinbao | Servo speed reducer | VRSF -15C-T1 | set | 1 | |
| 19 | Gute | Solid state relay | SSR-60DA | set | 3 | |
| 20 | Zhejiang | Buzzer | / | set | 1 | |
| 21 | Zhejiang | Rectifier bridge | / | set | 1 |

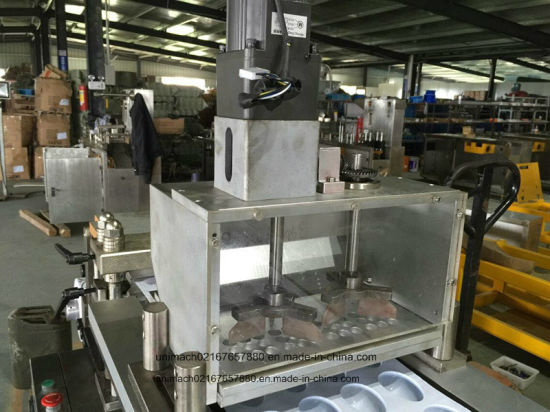

Detail photos of machine:
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
