    High Efficiency Pressure Plastic Rubber Homogenizer

    Product Description:

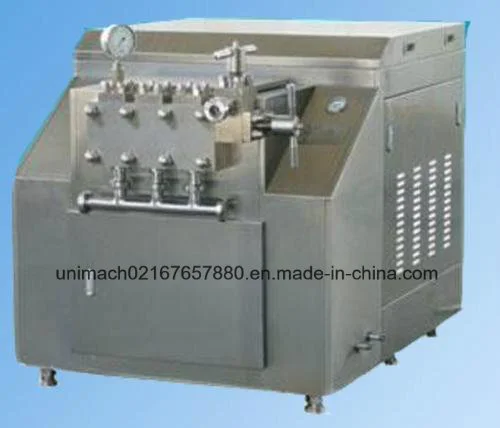

    Homogenizer:
    It is suitable for the homogenizing of liquid products whose viscosity is lower than 0.2Pa and whose temperature is lower than 80 C such as dairy, beverage, makeup, and medicine and so on. This equipment transports the processed material to homogenizing vale in high pressure way by triple plunger pump, making the material receive complex force such as turbulence, cavity, cut when the material flow past the little space between the valve plate and the valve seat to reach the purpose of emulsification and homogenizing.

    Structure of Homogenizer:

    The stator works in concert with rotor, the working head (the stator and rotor forging manufacturing) is claw type structure, double suction and the shear efficiency is high.

    Usages of Homogenizer:

    Application in biological medicine; Food industry; Day care; Coating printing ink; Nano-materials; Petroleum chemical; Printing and dyeing auxiliaries; Paper industry; Pesticide and fertilizer; Plastic rubber; Power electronics and other fine chemical industry.

    Characteristics of Homogenizer:

    1. With high stability, low noise, easy clean, flexible advantages. It can be widely used in industrial production of emulsion, uniform and scattered.
    2. Making the material refined mix under the triple action of crowding inquiry, strong impact and loss-pressure expansion.
    3. For soybean milk and other kinds of dairy drink milk, under high pressure for homogeneous
    4. It can improve the degree of fineness and loose, making its inherent quality obviously improved.
    5. It can prevent or reduce material liquid to layered, improve the look of the material liquid effect, making its color brighter, fragrance thicker, tastes well.

    Model Flow (L/H) Max .
    Pressure (M P a)
    Working
    Pressure (MPa)
    Weight
    (kg)
    Outer   Size
    (cm)
    Power (Kw)
    GYB 30-40 30 40 0~32 230 95×75×120 2.2
    GYB 500-25 500 25 0~20 670 100×75×110 5.5
    GYB 1000-25 1000 25 0~20 700 100×75×110 7.5
    GYB 1500-25 1500 25 0~20 720 100×75×110 11
    GYB 1000-30 1000 30 0~24 720 100×75×110 11
    GYB 300-40 300 40 0~32 670 100×75×110 5.5
    GYB 500-40 500 40 0~32 670 100×75×110 7.5
    GYB 300-60 500 60 0~48 720 100×75×110 11
    GYB 500-60 300 60 0~48 700 100×75×110 7.5
    GYB 300-100 500 70 0~56 720 100×75×110 11
    GYB 5000-20 5000 20 0~16 1500 130×125×150 37
    GYB 2000-25 2000 25 0~20 1150 120×105×140 15/18.5
    GYB 2500-25 2500 25 0~20 1250 130×106×145 22
    GYB 3000-25 3000 25 0~20 1350 130×110×145 22/30
    GYB 4000-25 4000 25 0~20 1400 130×125×150 37
    GYB 2000-30 2000 30 0~24 1350 130×125×145 22
    GYB 1000-40 1000 40 0~32 1200 120×105×140 15
    GYB 1500-40 1500 40 0~32 1350 130×120×145 22
    GYB 2000-40 2000 40 0~32 1400 130×120×145 30
    GYB 2500-40 2500 40 0~32 1500 130×125×150 37
    GYB 1000-60 1000 60 0~48 1350 130×120×145 22
    GYB 1500-60 1500 60 0~48 1500 130×125×150 30
    GYB 1000-80 1000 80 0~64 1500 130×125×150 30
    GYB 5000-25 5000 25 0~20 2000 210×110×105 45
    GYB 6000-25 6000 25 0~20 2450 250×130×110 55
    GYB 7000-25 7000 25 0~20 2550 250×130×110 65
    GYB 5000-30 5000 30 0~24 2000 210×110×105 45
    GYB 6000-30 6000 30 0~24 2500 250×130×110 55
    GYB 4000-32 4000 32 0~25.6 2000 210×110×105 45
    GYB 3000-40 3000 40 0~32 2000 210×110×105 45
    GYB 4000-40 4000 40 0~32 2500 250×130×110 55
    GYB 5000-40 5000 40 0~32 2600 250×130×110 65
    GYB 2000-60 2000 60 0~48 2000 210×110×105 45
    GYB 3000-60 3000 60 0~48 2850 250×130×110 65
    GYB 2000-70 2000 70 0~56 2000 210×110×105 45
    GYB 1500-80 1500 80 0~64 2000 210×110×105 45
    GYB 8000-20 8000 20 0~16 2550 250×130×110 65
    GYB 1000-100 1000 100 0~80 2000 210×110×105 37
    GYB 10000-25 10000 25 0~20 3500 215×200×110 90
    GYB 1200-100 1200 100 0~85 2000 210×110×105 45
    GYB 1600-100 1600 100 0~85 2600 250×130×110 55
    GYB 2500-100 2500 100 0~85 3800 2100×200×110 90


    High Efficiency Pressure Plastic Rubber Homogenizer

    High Efficiency Pressure Plastic Rubber Homogenizer

    High Efficiency Pressure Plastic Rubber Homogenizer

    High Efficiency Pressure Plastic Rubber Homogenizer


    Packaging & Shipping

     1.Nomally shipping steps:

     S45PNZ%`OL`M6O8H}V(SDJ

    2.Our packing and shipping:

    (4[KDGL_NF%E6%2]D`4JYP

    Our Services

     0OC}YRDYXP])TO]QMXZ48IJ

         Pre-Sales Service:



             * Inquiry and consulting support.



             *Quickly reaction.



              *Factory inspection available anytime.





          After-Sales Service:



             *Prompt technical support



            *Engineers available to service machinery overseas



            *Installation &commissioning,good training for customers.





    Our customer

     KE1PX$_SO]LLORZU3`DH8UW



    Certifications

    [$X~Z{0)[{$PW5F}H666N6M



    Company Information

    RX2]L7{%NOW0`YXF9~)M{_G



    FAQ

     Q1.What's your delivery method?

     A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



    Q2.What products can you provide?

    A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



    Q3. What's the payment terms?

    A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



    Q4.How do you ensure your product quality?

    A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



    Q5:Does the machine power voltage meet buyers' factory power source?

    A5: We can do it as your request.



    Q6: Is it difficult to install the machine ?

    A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

    For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

    You will get videos and instructions about installation of machine from us.
