Application:
QVC Series Pneumatic vacuum loading machine is used in automatic material for Tablet Press machine, Pulverizing machine, capsule filling machine, Screen machine, Packing machine, Pulverizing machine, Screen machine and Mixing machine etc. It doesn't need any mechanical vacuum pump, so it is simple structure, small volume, without repairing, no noise and easy being controlled. It can be stopped separating layer for the feeding material because the machine has high vacuum. QVC Series Pneumatic Vacuum Conveyor was designed according to international standard. It is easy cleaned and beautiful. It meets GMP requirement.
Characteristic:
Solve the problem thoroughly about the separating layer of material.
The sintered-metal filter is Japanese original.
It can be removed the material static electricity.
It is airtight without crossed contamination.
It is made in good quality stainless steel(304 and 316L).
It is made in non-toxic and corrosion resistant material.
Filter is easy cleaned.
It is controlled intelligently and automatically.
It is easy dismantled with building blocks structure.
It is easy set up and small volume, the weight is light
It is no noise and screening
It is economical and practical the cost is lower.
Working Principle

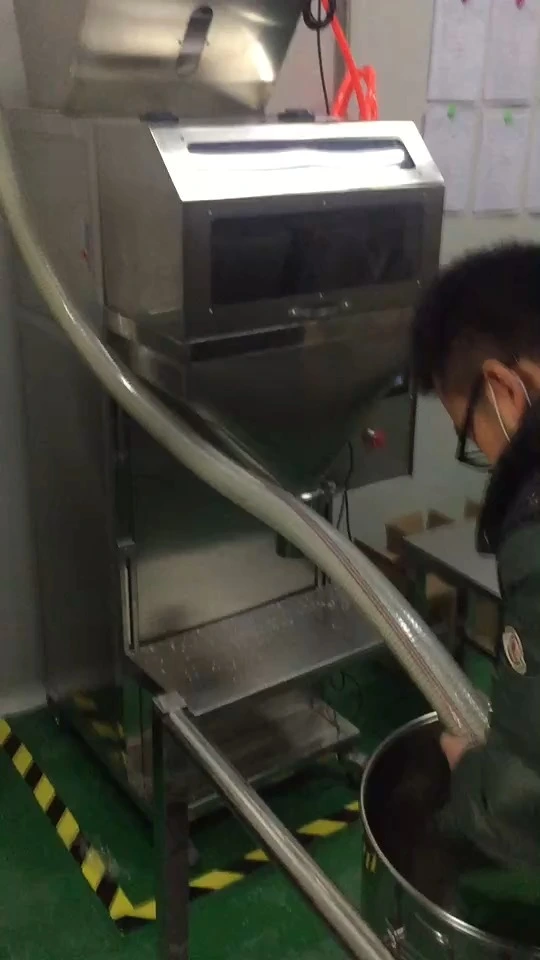

Vacuum feeder is a vacuum loading machine by using pneumatic vacuum pump as vacuum source. With this vacuum feeder materials could be fed directly from container into mixer, reactor, hopper, sheet press, packing machine, vibrating griddle, pellet trimming machine, hydro-state pelleter, dry-state pelleter and disintegrator. To use this feeder could lighten workers' labor intensity, put an end to powder pollution and ensure that the production process meets GMP requirements.
| Model | Capacity (kg/h) | Compressed air Consumption (Liter/min) | Pressure of Supplied Air (MPa) | Dimension |
| QVC-1 | 350 | 180 | 0.4_0.6 | Φ140x560 |
| QVC-2 | 700 | 360 | 0.4_0.6 | Φ213x720 |
| QVC-3 | 1500 | 720 | 0.4_0.6 | Φ290x850 |
| QVC-4 | 3000 | 1440 | 0.4_0.6 | Φ420x1150 |
| QVC-5 | 6000 | 2880 | 0.4_0.6 | Φ420x1150 |
| QVC-6 | 9000 | 4320 | 0.4_0.6 | Φ420x1350 |
| 1. Compressed air should be oil-free and water-free. 2. The feeding capacity has been determined by feeding distance and feature of products. 3.The feeding capacities are greatly different with different materials. | ||||
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
