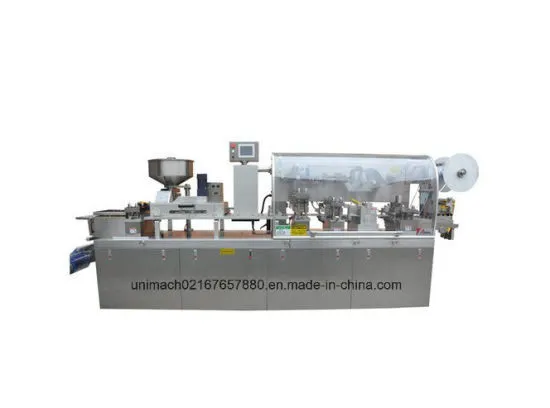

High Speed Al/PVC (AL/ALU) Blister Packing Machine

Quantity:

Applications

DP-260 Aluminum Plastic/duralumin Packing Machine with advanced performance, simple operation, high output is the latest improved equipment in our company. It is the best ideal packing equipment for large and medium-sized pharmaceutical plant, health care factory and food industry.

Features:
Adopts top brand PLC controller with touch screen displayed in Chinese and English, Frequency inverter for speed control, servo traction, which can ensure the length of blister traction adjustable within the range.

With thermal temperature control and test, main machine over loading protect, PVC and PTP packing material position test, feeder material position test ,failure automatic debug and alarm, automatic protection and stop running.

The machine station module type design of level frame, good sight, safe and convenient operation.

Thermal with contact type, positive press formed, air cushion thermal seal upper and lower net, photo register make your product package better.

PVC exchange support with bigger type material support, whole roller, which makes the equipment more practicability.

The special design of moulds in rectangle shape, ladder type fixing, provide much convenience and easy to moulds replacement. All material contact parts adopt high quality stainless steel and aluminum metal, slap-up surface treatment craft.

Discharging finished product in right order, automatic collection of bad products, auto rewinding of strap material to ensure easy collection.

Feeding efficiently, reliable and suitable for many kinds type arrange and irregular feeding,(according to actual product design fit feeder)

The machine has been designed into separated body, which is easily move into lifts or workshops.

Technical Specifications:

1) Punch frequency: (AL/PVC) 20-75 (times/min)
                     (AL/AL) 15-30 (times/min)

2) Capacity: (AL/PVC) 140 thousand grains/hour;
           (AL/AL) 75 thousand grains/hour

3) Max. Forming depth: (AL/PVC) 22mm;
                    (AL/AL) 18 mm

4) Adjustable range of travel: 30-140mm

5) Clean compressed air: 0.6-0.8Mpa

6) Air compressor ≥0.25m3/min

7) Total power: 380V 50Hz 8.5KW

8) Weight: 1800kg

9) Overall dimensions: 4500 x 760x 1620m
High Speed Al/PVC (AL/ALU) Blister Packing Machine


Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G

FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
