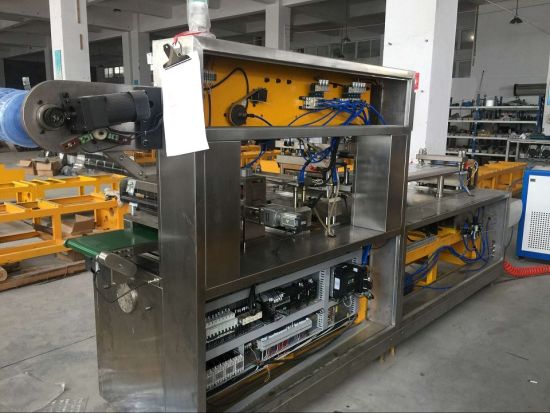

DPB-260D HIGH-SPEED ALU/ALU-ALU/PLASTIC BLISTER PACKING MACHINE
DPB-260D is the latest product developed by our company. This machine drives by servo motor and traction by precision leadscrew. It is a high-speed blister packing machine adopting PLC, frequency converter, and man-machine interface. It can check on-line and eliminate the waste plate by itself. In accordance with GMP rule requirement, it is an ideal blister packing machine for aluminum-aluminum, aluminum-plastic, paper-plastic packing. And it has got high popularity.
1. Traction drive by servo motor (traction by precision leadscrew or rubber press roller), with precise synchronization. The length of travel range can be set in man-machine interface.
2. Equipped with eye marking system, the background of printed pattern is uniform and looks pleasant.
3. Available for alu-plastic (hot forming) and alu-alu (cold forming), only change mould and feeder for alu-alu packing.
4. Various types of feeder solve the difficulty for irregular shape products packing.
5. Five stations forming, heat-sealing, batch number embossing, avulsion line impressing and cutting etc all adopt gear mandrel orientation, each can move freely in the mandrel when rotate the hand wheel, easy to adjust and accurately.
6. Newly mould orientation device speed up the mould changing requirement.
7. Equipped with plexiglass cover: The operation area is isolated with transmission organ, avoids pollution, easy for clean.
8. Online detection and ejection system can be chosen for option.
|Max. Cutting Time (t/min)||Al-Al ≤ 40 |
Al-plastic ≤ 60
|Max. Production Capacity (pcs/h)||Al-Al ≤ 100000 |
Al-plastic ≤ 300000
|Max. Forming Area And Depth (mm)||Al-Al 250× 180× 15 |
Al-plastic 250× 180× 26
|Max. Travel Range (mm)||180 (Can be manufactured as user' s requirements)|
|Standard Plate (mm)||80× 57 (Can be manufactured as user' s requirements)|
|Air Pressure (Mpa)||0.4-0.6|
|Air Supply||≥ 0.3m 3 /min|
|Total Power||380V/220V 50Hz 6.2kw|
|Main Motor Power (KW)||1.5|
|Forming Aluminum (mm)||0.10-0.15× 260|
|PVC Sheet (mm)||0.15-0.5× 260|
|PTP Aluminum Foil (mm)||0.02-0.035× 260|
|Dialysis Paper (mm)||50-100g× 260|
|Mould Cooling||Tap Water Or Circulating Water|
|Overall Dimension (mm)||3800× 730× 1600 (L× W× H)|
1.Nomally shipping steps:
2.Our packing and shipping:
* Inquiry and consulting support.
*Factory inspection available anytime.
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
