High-Speed Liquild Blister Packing Machine

Availability:
Quantity:

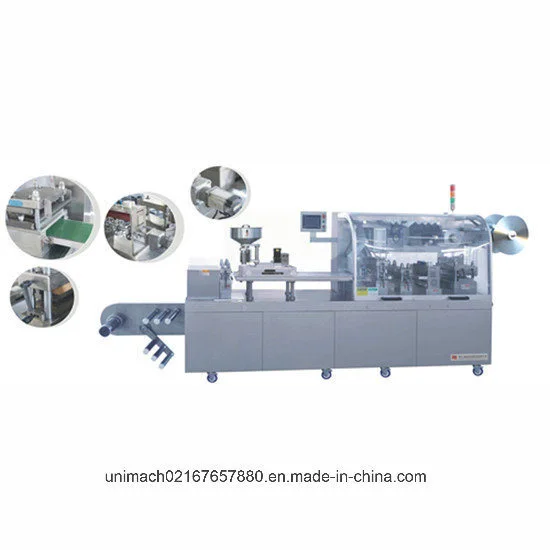

       DPK-260H2 HIGH-SPEED BLISTER PACKING MACHINE

High-Speed Liquild Blister Packing Machine
Technical parameters
:

Model DPK-260H2  HIGH-SPEED BLISTER PACKING MACHINE

Punching frequency
Alu-Pvc 25-60times/min
Alu-Alu 20-30times/min
Capacity Alu-Pvc6000-14000 blisters/h
Alu-Alu:4800-7200 blisters/h
Max. Forming depth 25mm
Range of stroke 30-120 mm   made to order140mm
Power 380V  50HZ   8.5KW
PVC hard pieces 0.25-0.5×260 mm
Dialyzing paper 50-100g×260 mm
PTP aluminum foil 0.02-0.035 ×260 mm
Cooling system Cooling water(provide for customer)
or cold circulating water (optional)
External dimension 4460×760×1620mm
Weight 1850kg

High-Speed Liquild Blister Packing Machine
Component configuration list:

No. Brand Name Model unnit Qty Mark
1 CHINT
Circuit breaker
DZ47-3P-C25 set 1
2 CHINT
Circuit breaker
DZ47-1P-C10 set 5
3 CHINT
Circuit breaker
DZ47-2P-C10 set 1
4 CHINT
Intermediate relay + base / set 8
5 Mibo Switch power supply S-100-24V set 1
6 Hechuan Servo motor
set 1
7 Hechuan Servo driver
set 1
8 Hechuan Servo plug-in unit
set 1
9 Hechuan Frequency converter C380-2.2kw set 1
10 OMRON Photoelectric switch E3Z-D61 set 1
11 Hechuan PLC CP1H-X40DT-D set 1
12 Hechuan Extension module LX1N-60MT set 2
13 Hechuan Communication port TX1N-485-BD set 1
14 Hechuan Communication port TX1N-232-BD set 1
15 Hechuan Temperature control module SAT100-00011 set 1
16 OMRON Encoder E6B2-CWZ6C-1000P/R set 1
17 Hechuan Touch screen TL-1370 set 1
18 Xinbao Servo speed reducer VRSF-15C-T1 set 1
19 Gute Solid state relay SSR-60DA set 3
20 Zhejiang Buzzer / set 1
21 Zhejiang Rectifier bridge / set 1

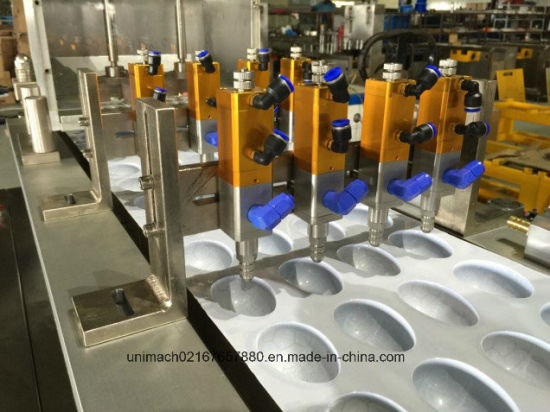

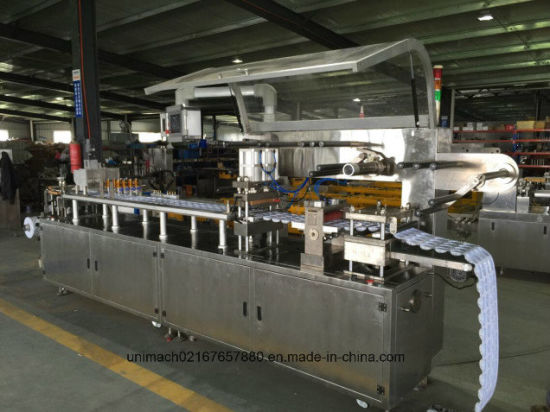

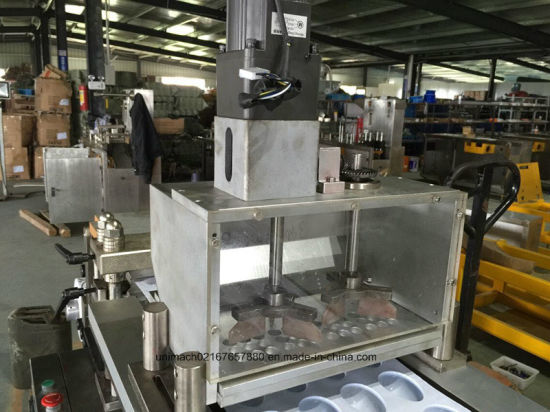

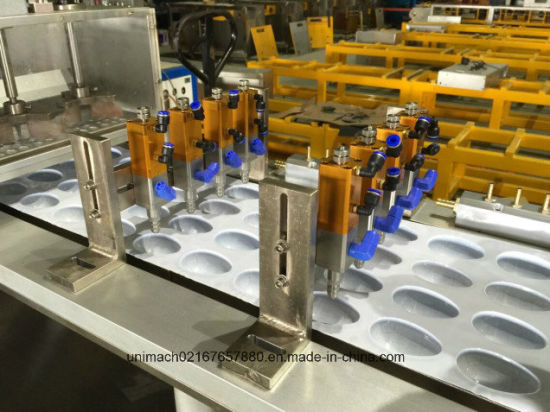

Detail photos of machine:
High-Speed Liquild Blister Packing Machine
High-Speed Liquild Blister Packing Machine
High-Speed Liquild Blister Packing Machine




Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G



FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
