Applications:

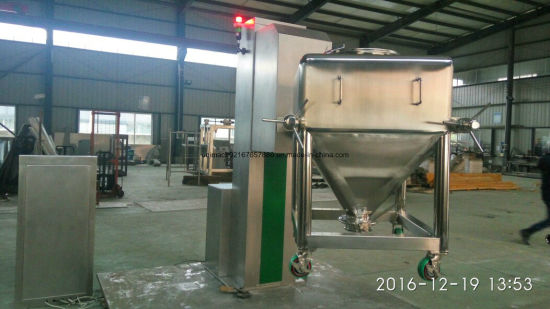

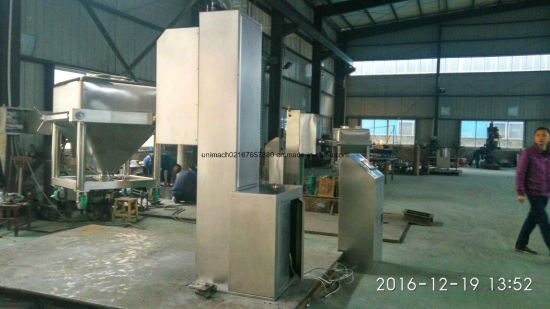

HTD Series Post bin blender is mainly used in blending of solid particle and dust powder materials in pharmaceutical industry. With features of being easy in loading and discharging and having good blending effects it is also widely used in food and chemical industries.
Features:
A. The bin is slippery inside easy to clean and has no dead angles complying with GMP requirements.
B. Feeding valve is equipped with anti-misoperation device reliably sealed and easy to be removed and cleaned.
C. With PLC and touch screen integrated speed controlled by frequency variation this machine has many features such as adjustable rotating speed and working parameter automatic positioning printing and fault alarming.
D. It takes less floor space and is therefore flexible and convenient during installation.
E. It is easy in bin replacing.
| Model | Main dimensions | Volume (L) | Net Loading capacity (KG) | Speed | Power | Power | weight | |||||
| L | W1 | W2 | H | H1 | H2 | rpm | Kw | Kw | T | |||
| HTD-50 | 2000 | 1100 | 650 | 1900 | 200 | 650 | 50 | 25 | 3-25 | 1.1 | 1.1 | 0.7 |
| HTD-100 | 2050 | 1200 | 650 | 1900 | 200 | 650 | 100 | 50 | 3-25 | 1.1 | 1.1 | 0.8 |
| HTD-150 | 2100 | 1350 | 650 | 2000 | 250 | 650 | 150 | 75 | 3-20 | 1.1 | 1.1 | 0.9 |
| HTD-200 | 2200 | 1800 | 800 | 2200 | 250 | 650 | 200 | 100 | 3-20 | 1.5 | 1.5 | 1 |
| HTD-300 | 2400 | 2000 | 800 | 2400 | 300 | 700 | 300 | 150 | 3-20 | 2.2 | 2.2 | 1.3 |
| HTD-400 | 2450 | 2050 | 800 | 2400 | 300 | 700 | 400 | 240 | 3-20 | 2.2 | 2.2 | 1.4 |
| HTD-500 | 2650 | 2170 | 800 | 2400 | 350 | 700 | 500 | 250 | 3-15 | 3 | 2.2 | 1.5 |
| HTD-600 | 2880 | 2300 | 800 | 2400 | 350 | 700 | 600 | 330 | 3-15 | 3 | 2.2 | 1.7 |
| HTD-800 | 3030 | 2400 | 800 | 2800 | 400 | 800 | 800 | 400 | 3-15 | 4 | 2.2 | 1.9 |
| HTD-1000 | 3120 | 2600 | 800 | 2800 | 400 | 800 | 1000 | 500 | 3-15 | 4 | 2.2 | 2 |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
