Jacket Tank (miller jacket/coil jacket)

Availability:
Quantity:

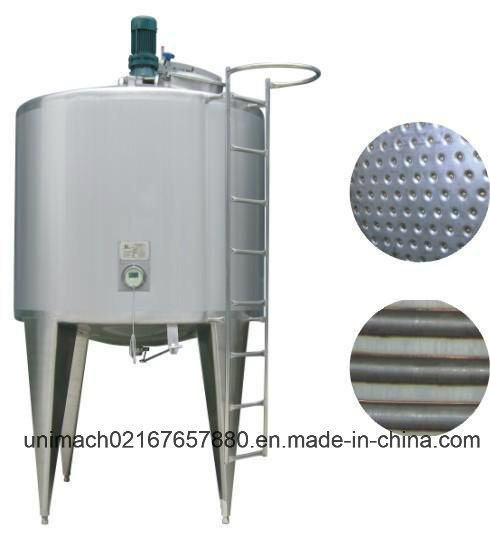

Jacket storage tank:
1. Sus304 2B stainless steel
2. Dimple jacket or coil jacket for heating/cooling
3. Agitator 36rpm



This stainless steel jacke stoarge tank with jacket for cooling or heating;
The jacket type can be dimple pad or empty or coiled pipes, which can heat or cool the product inside;
Special design of flow path ensures the cooling or heating medium distribute much well in the jacket, so the heat exchange efficiency is high.
Use: Widely used for preparing(heating), sterilize, fermentation, aging, blending, cream storage etc.

Model (L)
Diameter
External diameter Heightmm Insulationδ Jacketδ Diameter of inlet/outlet
BYDG-500 φ500 800 2140 50 1.5 φ38
BYDG-1 φ1000 1050 2380 50 1.5 φ38
BYDG-1.5 φ1500 1180 2550 50 1.5 φ38
BYDG-2 φ2000 1340 2760 50 1.5 φ38
BYDG-2.5 φ2500 1420 2940 50 1.5 φ38
BYDG-3 φ3000 1540 3050 50 1.5 φ38
BYDG-4 φ4000 1650 3200 50 1.5 φ38
BYDG-5 φ5000 1780 3250 50 1.5 φ38
BYDG-6 φ6000 1900 3350 50 1.5 φ38
BYDG-8 φ8000 2100 3800 60 1.5 φ65
BYDG-10 φ10000 2300 4050 60 1.5 φ65
BYDG-12 φ12000 2520 4450 60 1.5 φ65


Jacket Tank (miller jacket/coil jacket)

Jacket Tank (miller jacket/coil jacket)

Jacket Tank (miller jacket/coil jacket)

Jacket Tank (miller jacket/coil jacket)

Jacket Tank (miller jacket/coil jacket)



Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G



FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
