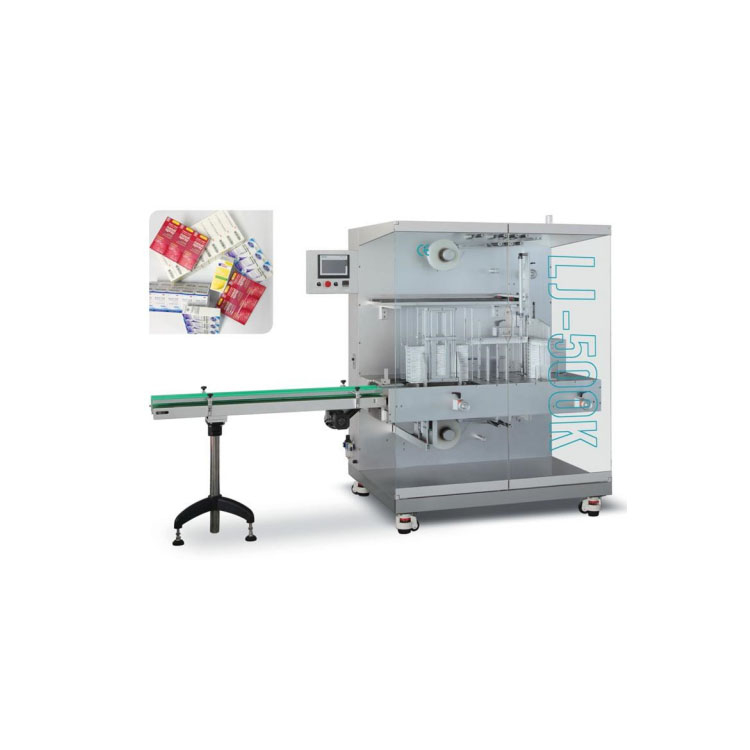

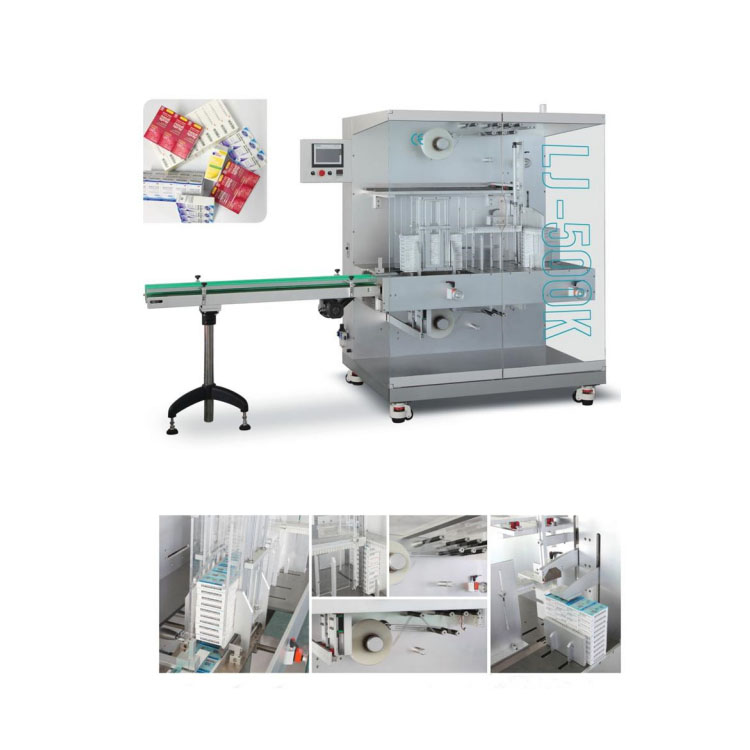

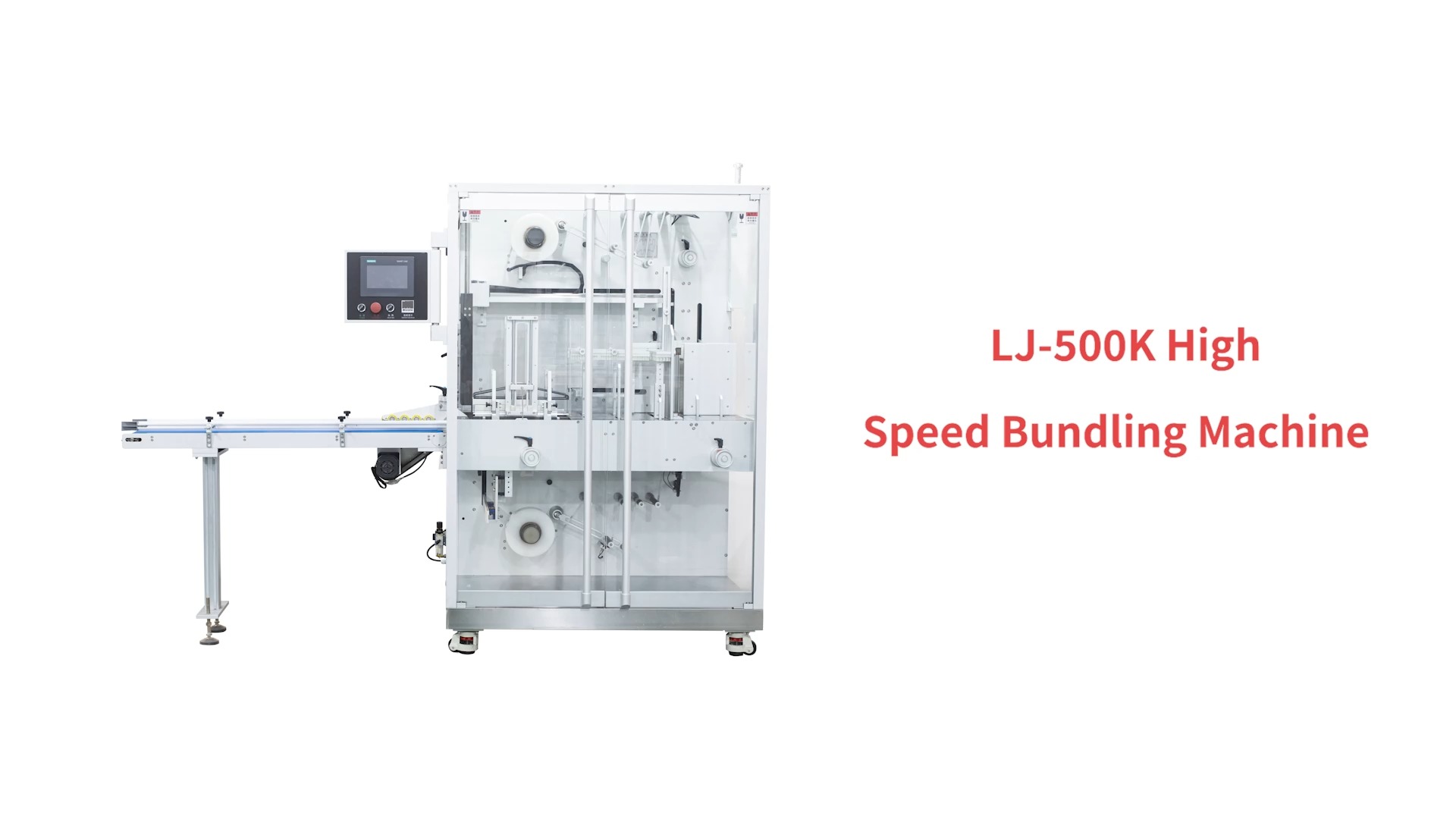

LJ-500K Automatic High-speed film bundling machine

The LJ-500K automatic high-speed strapping machine is a new product developed by our company based on the combination of foreign technology. It fills the blank of high-speed cartoning in pharmaceutical companies, and can link unpacking, boxing, and realizing a complete back-packing production line. The body and components of the equipment adopt all-aluminum high-end advanced design, imported electrical components, PLC, and human-machine interface operation, which make the equipment operation process more stable and convenient. It can be used in the pharmaceutical, food, and cosmetic industries. The equipment complies with CGMP standards.
Availability:
Quantity:
  • LJ-500K

 LJ-500K  Automatic High-speed film bundling machine


Product introduction:

The LJ-350K automatic high-speed strapping machine is a new product developed by our company based on the combination of foreign technology. It fills the blank of high-speed cartoning in pharmaceutical companies, and can link unpacking, boxing, and realizing a complete back-packing production line. The body and components of the equipment adopt all-aluminum high-end advanced design, imported electrical components, PLC, and human-machine interface operation, which make the equipment operation process more stable and convenient. It can be used in the pharmaceutical, food, and cosmetic industries. The equipment complies with CGMP standards.


Technical parameters

Packing speed

25-35 bags/min (stable production speed)

Packing box size

Maximum 260*260*300 (MM)

Minimum 50*60*90 (MM)

Packing material size

PE film (width 30-80MM, thickness 30-80UM)

power supply

220V/50HZ

Total power

3KW

Gas pressure

0.6-0.8MPa

weight

800KG

Conveying size

Length 800*width 296*height 840 (MM)

Main machine size

Length 1240*Width 1000*Height 1750 (MM)

LJ-350-2

Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G

FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
