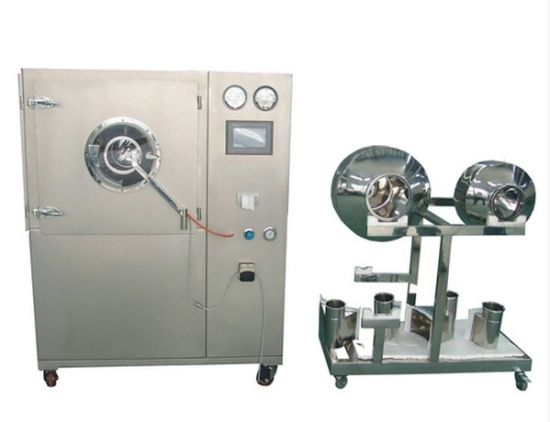

BGB-5H coating pan interchangeable coating machine is a kind of excellent laboratory equipment which is used for film coating, This equipment is manufactured according to the requirements of GMP standard. With three interchangeable coating pans, make it more versatile and powerful for laboratory purpose.
1. All in one design. hot-air inlet, coating and hot air exhaust are all in one machine.
2. Control and display the negative pressure of coating pan
3. Display the differential pressure of HEPA filter in supply air
4. Control and display the temperature
5. Control and adjust the atomization covered area.
6. Program control of spray gun and atomization
7. Design of gun clearing and anti-block
8. With the functions of memory and printing
9. With the function of interchangeable coating pan
10.With the functions of impulse and de-dusting.
| Technical specifications | |
| Model | BGB-5H |
| Coating Pan Diameter (mm) | 300,380,480 |
| Production Capacity (kg/batch) | 1, 3,5 |
| Rotating Speed Of Coating Pan(rpm) | 6-30 |
| Motor Power Of Main Machine (kw) | 0.37 |
| Temperature Range Of Hot Air | From normal environmental temperature to 80 centigarde |
| Filtration Accuracy Of Hot air (um) | 0.5 |
| Power Of Hot Air Motor (kw) | 0.25 |
| Power of Exhaust Motor (kw) | 0.37 |
| Power Of Electric Heating (kw) | 6 |
| Power Of Peristaltic Pump (kw) | 0.03 |
| Dimension Of Main Machine (mm) | 1250x900x1680 |
| Weight (kgs) | 400 |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
