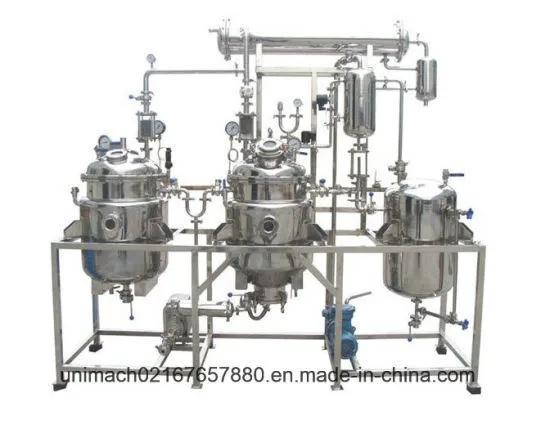

Mini Auto Lab Scale Extractor & Concentrator (TQM)


Product Description
Product Name: MTD Series (Automatic-controled) Mini Extracting & Concentrating Unit


This equipment is suitable for extracting and concentrating the effective component from Chinese herbs and other botanical. It also can realize the solvent recovery and the essential oil collection and it is especially suitable for R&D in hospital, pharmaceutical factory, scientific research etc.


1. This equipment has small covering area, excellent manufacturing, complete collocation, simple operation. It is consist of extracting tank, concentrated pot, storage tank for recycling liquid material, condenser, oil-water separator, filter, delivery pump, vacuum pump and so on. We have steam heating and electric heating, the user can operate it only to engage the steam or electricty.

2. This equipment combines extraction, vacuum concentration, solvent recovery together and it can realize the operation of normal temperature extraction, low temperature extraction, hot circumfluence, low temperature circumfluence, low temperature concentration and essential oil collection etc. The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100º C freely, so it is espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.
3. This equipment can be equiped with PLC control system according to user's requirement and control the parameter during the processing to enhance the production efficiency and quality.

Mini Auto Lab Scale Extractor & Concentrator (TQM)

MTD-20 MTD-50 MTD-100 MTD-200 MTD-300 MTD-500
Extraction volume(L) 20 50 100 200 300 500
Concentration volume(L) 20 50 100 200 300 500
Working pressure in jacket(MPa) <0.1Mpa
Working pressure in tank(MPa) Usual pressure or Negative pressure
Extract Tempreture(ºC) 40-100
Medium Steam / Hot oil
Vacuum pump model SK-0.4 2X-2.2KW 2X-2.2KW 2X-3KW 2X-3KW 2X-4KW
Electric power(kw) 0.37 0.37 0.37 0.37 0.37 0.55
Tempreture scope 0-200ºC
Total electric power(kw) 6+6 12+12 15+15 18+18 24+36 36+48
Material Stailess steel

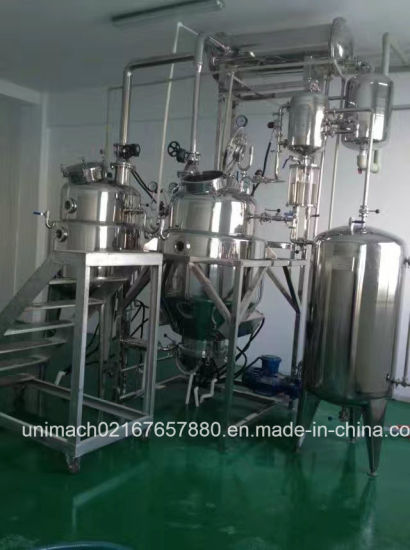

Mini Auto Lab Scale Extractor & Concentrator (TQM)

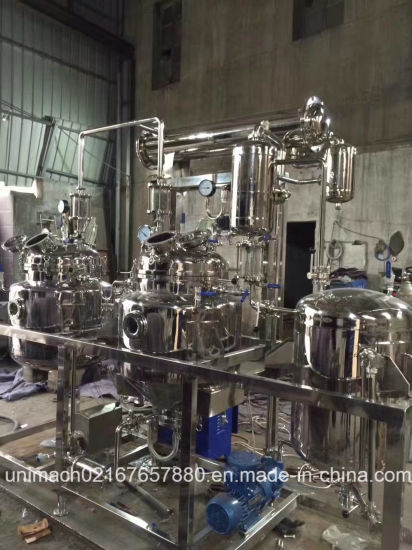

Mini Auto Lab Scale Extractor & Concentrator (TQM)

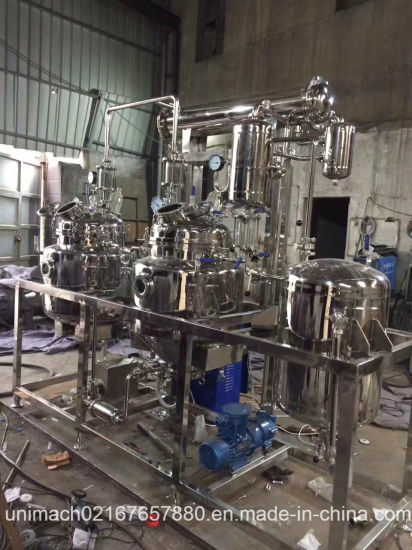

Mini Auto Lab Scale Extractor & Concentrator (TQM)

Mini Auto Lab Scale Extractor & Concentrator (TQM)

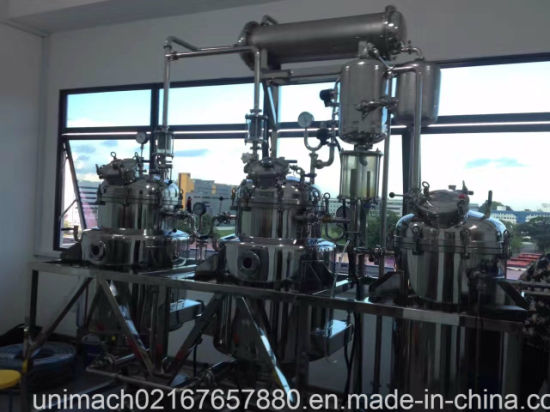

Mini Auto Lab Scale Extractor & Concentrator (TQM)
