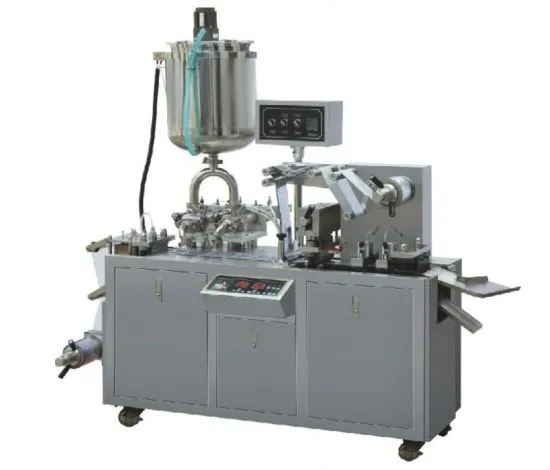

Mini Liquid Blister Packing Machine (DPB-80Y)

Quantity:

Packaging & Delivery

Packaging Detail: Export Wooden case

Delivery Detail: 40 Days

Specifications

Blister Packing Machine is Suitable for packing the liquid like chocolate, butter, jam, honey, ketchup,
Can be controlled by Siemens PLC and Siemens touch screen,
filling head can be one or two,

Applications

Suitable for packing the liquid like chocolate, butter, jam, honey, widely used in Food industry.



Mini Liquid Blister Packing Machine (DPB-80Y)

Punch frequency 10-40 (times/min)
Output 2400edition/hour,standard edition: 80*57
Max formed area and depth 80*100*26 mm
Standard travel range 20-70(adjustable)
Standard edition 80*57 (adjustable)
Air pressure 0.4-0.6 MPa
Total power 380v/220v   50Hz  3Kw
Main motor power 0.75Kw
PVC hard pieces 0.15-0.5*80mm
PTP aluminum foil 0.02-0.035*80mm
Dialysis paper 50-100g*80mm
Mould cooling tap water or recycle water
Overall dimension(L*W*H) 1400*460*950 mm
Weight 450kg


Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G



FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
