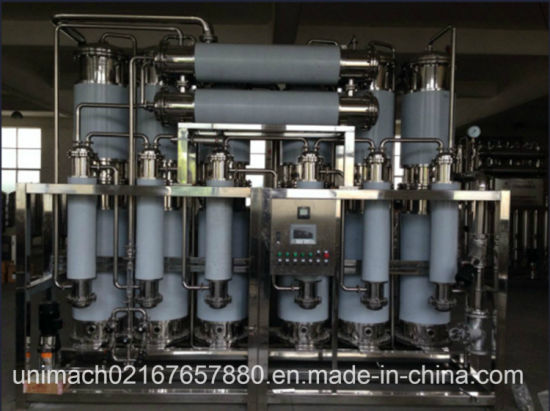

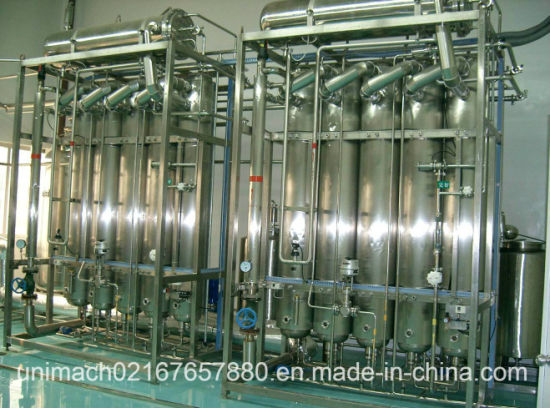

Multi-Efffect Water Distiller Machine (MS)
Applications
Multi-effect water distiller has become the most accepted process for the production of water for injection(WFI) in pharmaceutical, Biotech industries and hospitals.
Fed by pure water, and heated by plant steam, multi-effect distillation can produce WFI of stable quality and high purity.The technology of multi evaporation makes effective heat consumption.
Column Construction

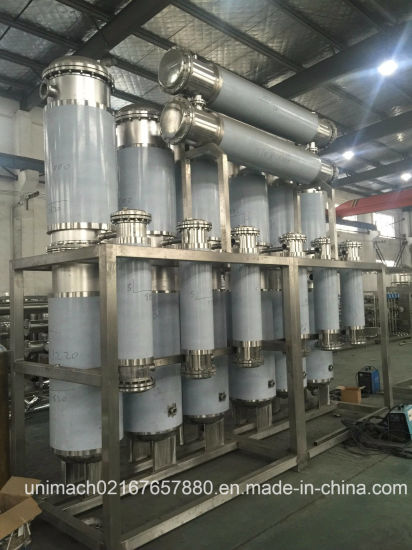

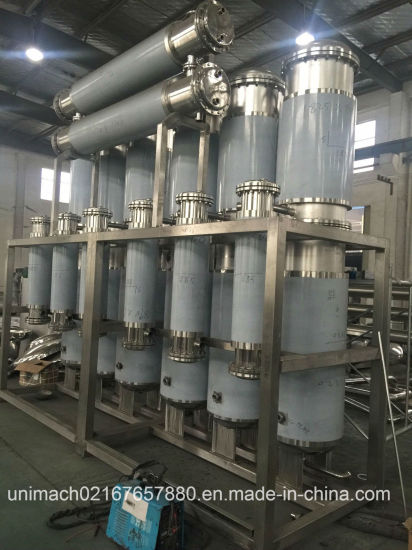

The construction of columns on multi-effect distillation is collocated-tube, falling film technology with centrifugal impurity and pyrogene separation.The feed water drops down at the inside of the evaporator tube where it is converted into pure steam.Special distributor makes the water goes down the tube in a membrane way and evaporate rapidly and the water-drop (moist form) in that pure steam is removed.The pure steam without water-drop then goes into next column as heat source and it is condensed as distillated water.
The three level centrifuge and separation technology, Siemens S7 series control system with Chinese and English operational languages is adopted in MS series multi-effect water distiller.With standard collocated water inlet boosting pump and storage tank, buffer tank is optional.With standard collocated factory steam pressure-reducing valve.With device for discharging incondensable gas continuously.Discharging remained liquid continuously.Recording conductivity and valve position of WFI.With complete factory acceptance test for equipment manufacture.Adopting demineralized water or RO water for water inlet.
| Steam actuating pressue:0.3MPa | Steam actuating pressue:0.5MPa | |||||||||
| Model | Columns | Capacity | Industrial steam Kg/h | Cooling Water Lt/h | Capacity | Industrial steam Kg/h | Cooling Water Lt/h | Hight mm | Length mm | Width mm |
| MS100 | 4 | 110 | 35 | 62 | 165 | 54 | 99 | 2310 | 1420 | 1110 |
| MS200 | 4 | 220 | 70 | 131 | 330 | 108 | 204 | 2310 | 1520 | 1110 |
| MS200 | 5 | 220 | 29 | 57 | 330 | 87 | 91 | 2310 | 1770 | 1110 |
| MS300 | 4 | 330 | 104 | 201 | 495 | 162 | 315 | 2310 | 1520 | 1110 |
| MS300 | 5 | 330 | 84 | 90 | 495 | 130 | 146 | 2310 | 1770 | 1110 |
| MS500 | 4 | 550 | 173 | 338 | 825 | 269 | 528 | 2850 | 1610 | 1290 |
| MS500 | 5 | 550 | 140 | 154 | 825 | 217 | 249 | 2850 | 1910 | 1290 |
| MS750 | 4 | 770 | 243 | 474 | 1155 | 377 | 741 | 3380 | 1810 | 1390 |
| MS750 | 5 | 770 | 196 | 218 | 1155 | 303 | 350 | 3380 | 2160 | 1390 |
| MS1000 | 5 | 1100 | 279 | 300 | 1650 | 433 | 480 | 4100 | 2850 | 900 |
| MS1000 | 6 | 1100 | 234 | 68 | 1650 | 365 | 127 | 4100 | 3330 | 900 |
| MS1500 | 5 | 1600 | 405 | 446 | 2400 | 682 | 713 | 4200 | 3190 | 1000 |
| MS1500 | 6 | 1600 | 340 | 111 | 2400 | 527 | 203 | 4200 | 3700 | 1000 |
| MS2000 | 5 | 2200 | 556 | 622 | 3300 | 863 | 991 | 4300 | 3600 | 1200 |
| MS2000 | 6 | 2200 | 467 | 164 | 3300 | 724 | 293 | 4300 | 4200 | 1200 |
| MS3000 | 6 | 3300 | 700 | 257 | 4950 | 1085 | 457 | 4450 | 4510 | 1200 |
| MS5000 | 6 | 5500 | 1164 | 457 | 8250 | 1805 | 799 | 5500 | 6040 | 1380 |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
