NJP -260
HAIBI
8422303090

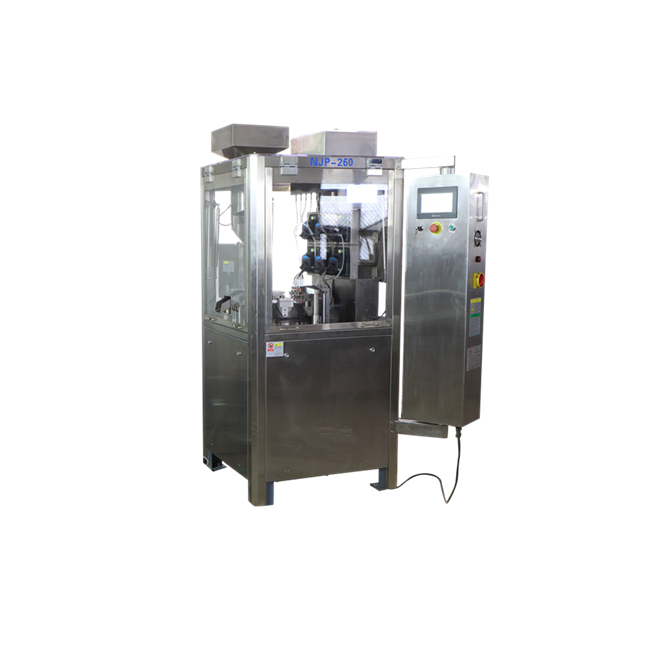

Characteristics of NJP - 260 Full - automatic Hard Capsule Filling Machine
Maximum output per minute 260 grains. Product standardization, serialization production: the general interchangeability of manufacturing parts reached more than 99%, each part has a fixed code, change die parts positioning hole positioning. High precision of repeated positioning; Quick mold change, easy operation and convenient cleaning.
The main characteristics are as follows :
1 . The transmission cam of all the stations is improved , the original outer cam is pulled by the spring and changed to high quality special material , the inner groove wheel transmission is made , the fatigue of the spring is eliminated , the service life is short , and the wear and operation are stable .
2. considering the equipment running for a long time, the powder dust easily enters the mold plate cleaning table elements, innovative design of the sealing ring outer dust separation device. Fully guarantee the equipment operation and maintenance of equipment sealing cumbersome ills.
3. increase in the dynamic control system, easy and user-friendly operation of.4. production and cleaning the lack of capsule
Equipment specifications and technical parameters
Equipment model, specification | NJP - 260 Full - automatic Hard Capsule Liquid Filling Machine | |
technical parameter
| weight | 900kg |
dimension | 1020×860×1970mm | |
motor power | 5.75kw | |
source | Three-phase four-wire AC 380V;50Hz | |
Maximum production capacity | 260 capsules / minute | |
capsule model | 00#～5# and safety capsules A～E | |
capsule filling rate | ≥99.5％ | |
noise | ≤75dBA | |
filling precision
| Liquid 300mg or more ≤±3% | |
Compressed air | 0.06m3/min 0.3Mpa | |
Water source requirement | The water ring vacuum pump is equipped with a water tank for recycling, and can also be connected to an external water source. | |
Vacuum degree | -0.02～-0.06 MPa | |
Water flow | 250L/h | |
Inlet pipe inner diameter | 20mm | |
Drain pipe inner diameter | 27mm | |
Working temperature | 21℃±3℃ | |
Working plant height requirements | Manual feeding ≥2.6m, vacuum feeding ≥2.8m | |
Working environment relative humidity | 40～55％ | |
Exhaust volume | 300m3/h | |
Control System | Variable frequency stepless speed regulation, PLC control | |
material | Parts that are in direct contact with the capsule and liquid are made of 304 and 316L high quality stainless steel | |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What’s the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment, and D/P is acceptable as well.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
