NSF-800 Hard Liquid Capsule Sealing Machine

Product features:

1.It can not only be used on-line with domestic full-automatic capsule filling machines of various types (liquid capsules), but also can be used for single-machine production in pharmaceutical factories and health care products factories.

2. Unique inventive patent technology and secondary gluing technology are used to lock the sealing effect and allow the glued part of the capsule to be glued.

The position is more even and beautiful.

3. The rubber box is designed with asbestos insulation, and the high-sensitive temperature sensor is used to make the temperature of the rubber box real-time control accurate and operational.

It's safe and reliable.

4. The rubber box and the machine body adopt the pneumatic clutch design, which can be easily disassembled and cleaned conveniently.

5. Use the unique invention patent, let the capsule blanking accurate, orientation, accurate arrangement, do not damage every capsule.
Availability:
Quantity:
  • NSF-800

  • HAIBI

  • 8422303090

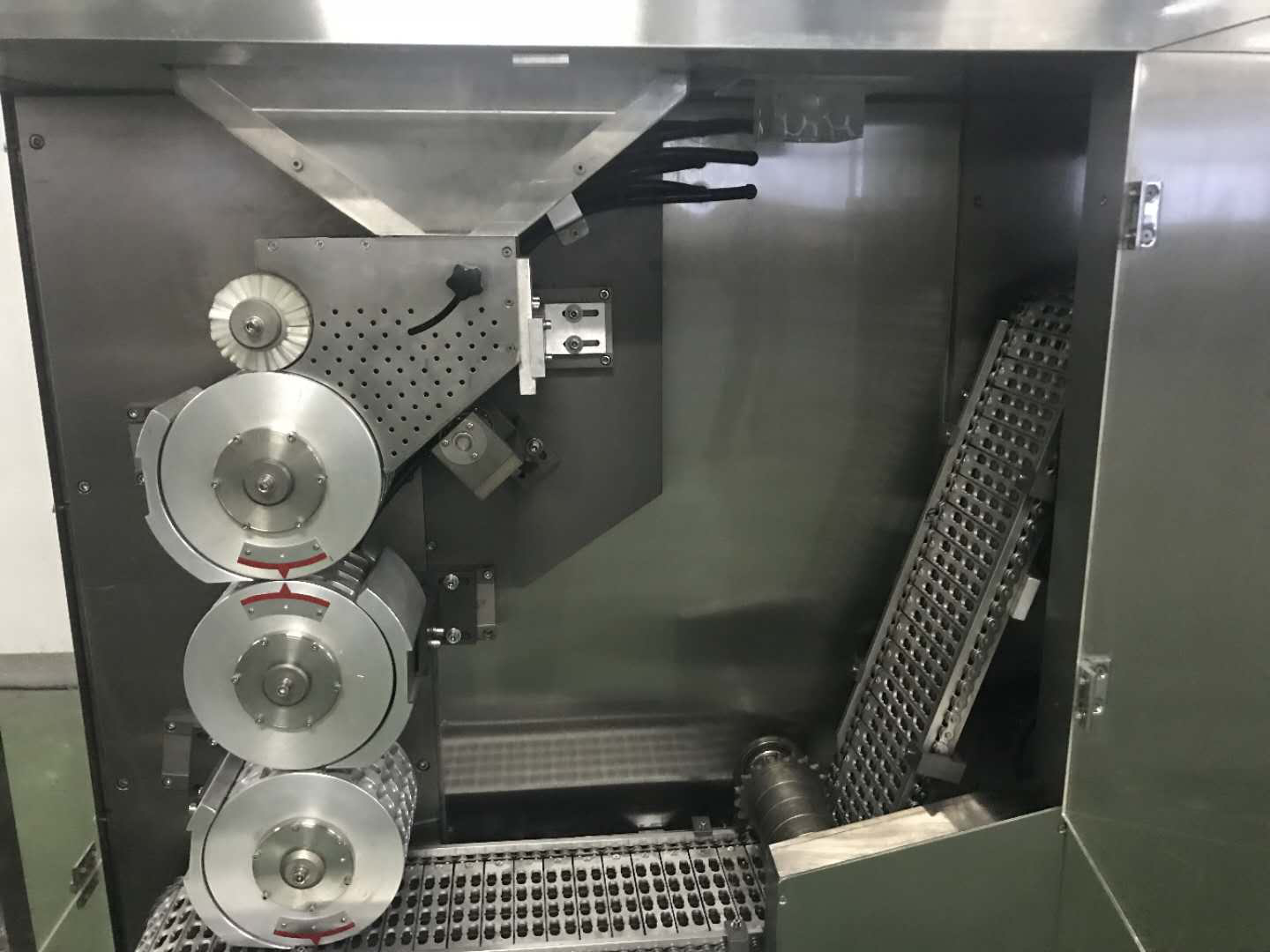

NSF-800  hard liquid capsule sealing machine


图片1_副本


Product Description
Descriptive Abstract



Schematic diagram of linkage line between full-automatic filling machine and full-automatic capsule sealing machine




Main Technical Data



Model



NSF-800



Production efficiency


50-60,000 pills/hour (water Soluble sealing material)

40,000-50,000 pills/hour (non-Water-soluble sealing material)





Rated power



5000W




Power Supply





380V/50 Hz

Water-soluble adhesive Liquid temperature

30 ° C-40 ° C




Environmental requirements

Around 25 ° C, humidity 45%-75%

Weight

1000KG
 Machine size

 2300*700*1600mm





Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G



FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What’s the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment, and D/P is acceptable as well.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
