Ncj-C Economical and Practical Semi-Automatic Capsule Filler

Quantity:

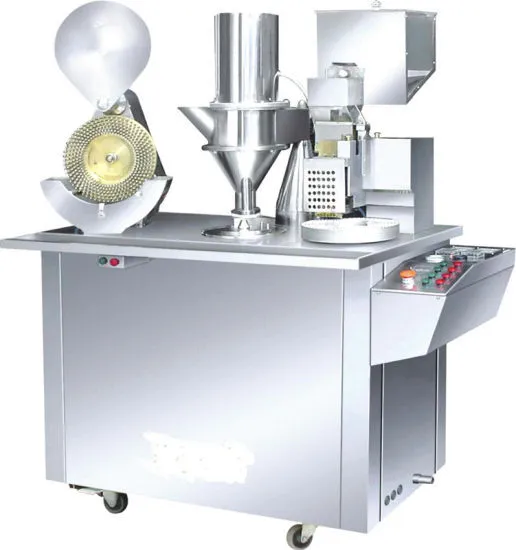

                                NCJ-C Semi-Automatic Capsule Filler
Ncj-C Economical and Practical Semi-Automatic Capsule Filler


Introduction
NCJ-C Modification Type Capsule Filling Machine is new medical packing machinery with novel structure and artistic molding. It adopts mini computer speed-adjusting equipment, and to be controlled by the electric and pneumatic, equips electron automatic counting device. It can respectively finish the different processes separately such as arrangement, separating, filling, locking and etc. which reduce labor intensity, improve production efficiency, raise the accuracy of filling dosage. The machine meet with GMP standard.
This product is composed of sending capsule, arranging capsule and separation mechanism, medicines filling mechanism, tight locking mechanism, mini computer speed-adjusting mechanism, pneumatic and electric control system, protective equipment, vacuum pump, air pump accessories etc. It is suitable for both the domestic and imported capsules; certificated rate is more than 97%.

Main Technical specifications

Maximum capacity 12,500capsules/h
Capsule size 00#,0#,1#,2#,3#,4#
hard capsule
Power (kw) 2.2
Power supply 380V 50Hz
Overall dimensions (mm) 1350x700x1600(LxWxH)
Weight (kg) 400





Configuration Part list for
NCJ-C semi-automatic Capsule filler

1 Name Model Brand
/manufacturer
Voltage Qty
2 Pneumatic elements ModelAC-200 Hualong group
2
3 Bearing Many models haerbin
Group
4 Reducer WPWD-40 Hangzhou yushen reducer factory
2
5 Motor YS6324.7124 Zhejiang linhai chunhua motor
3
6 Vacuum pump XD-40 Shanghai pujing
1
7 Stainless steel 304 China
Pieces
8 Inverter N2 T-VERTER
from Taiwan
2-220V 2
9 Counter SYJ-48A1 Zhejiang ruian chaoke AC-36V 2
10 Heat relay NR2-25 CHNT
1
11 Button LAS1-BY-11M Zhejing hongbo
8
12 AC contactor LC1-D09/10 Schneider AC-36V 3
13 Transformer BK-100 Zhejiang transformer group,
inlet 220,outlet 36V
1
14 Time relay AH-3-3 CKC-songling motor AC-36V 1
15 Miniature relay HH564P Zhejiang lierde AC-36V 2
16 Mini relay DZ47-10/1P CHNT
1
17 Mini breaker DZ47-10/1P CHNT
1
18 Proximity switch   GL-8F OMRON DCO-36V 1
19 Emergency button Y090-11M Zhejiang niushi
1
20 Distance switch AZ-7311 Zhejiang niushi
1
21 Proximity switch ANJK-5002C Zhejiang taihua
1

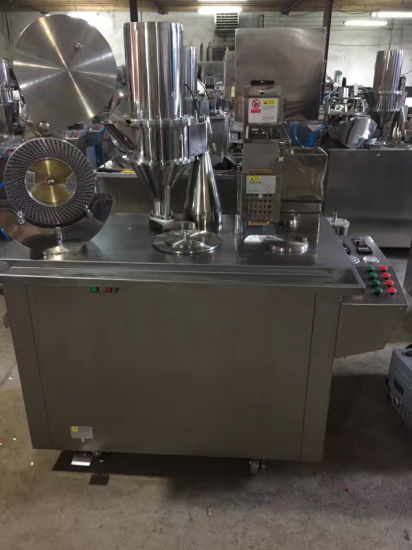

Real pictures for machines
Ncj-C Economical and Practical Semi-Automatic Capsule Filler
Ncj-C Economical and Practical Semi-Automatic Capsule Filler
Ncj-C Economical and Practical Semi-Automatic Capsule Filler
Ncj-C Economical and Practical Semi-Automatic Capsule Filler
Ncj-C Economical and Practical Semi-Automatic Capsule Filler


Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G

FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
