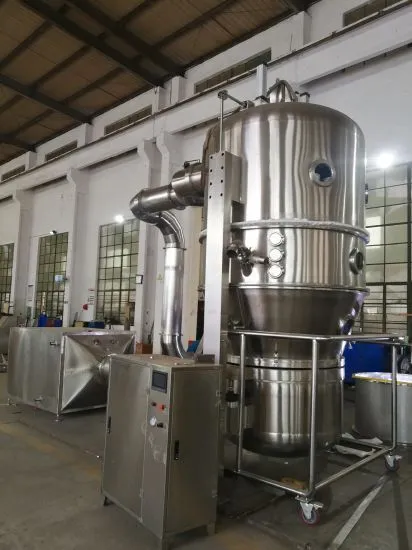

Pharmaceutical Vertical Fluid Bed Dryer with Drying Equipment
Applications:
The machine is main used for drying powder or granules from pharmaceutical, foodstuff, chemical and so on industries.
Feature:
Fluid bed drying to achieve fast heat transmission of medium.
Sealed and negative pressure operated, there is no dust.
Because of using anti-static material as filter, it is safe in operation;
The equipment has no dead corner so it is easy to clean fully and there is no cross pollution for products;
It is in conformity with the requirements of GMP.
Technical paramaters:
| Spec | 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | 1000 | ||||
| Item | unit | ||||||||||||
| container raw material | Diameter | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 2200 | ||
| volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | 2500 | |||
| production capacity | min. | Kg/batch | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 | 500 | ||
| Max. | Kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | 1100 | |||
| Consumption of steam | Kg/batch | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | 800 | |||
| amount of compressed air | m3/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.5 | |||
| power of fan | kw | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | 75 | |||
| temperature | C | Adjustable from ambient to 120 | |||||||||||
| Product collection rate | % | >99 | |||||||||||
| time of operation | min | 15-30 (depends on material) | |||||||||||
| Final moisture content of final product | % | About 0.2 (depends on material) | |||||||||||
| noise | db | ≤75 | |||||||||||
| height of main machine | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4800 | 6200 | |||
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
