Features

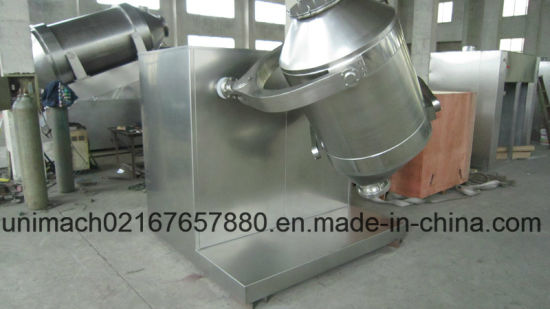

The barrel for charging the materials is driven by the driving shaft. The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that the materials will carry out the three dimensions and complex movements along the barrel body so as to realize the various movements of the materials. Through disseminating, gathering, agglomerating and mixing to realize uniform mixing.
Applications
The mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specific gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is high. The machine is the desired one of various mixers at present.
The material charge rate of barrel is big. Maximum rate can be up to 90% (while normal mixer has only 40-50% of charge rate). It is high in efficiency and short in mixing time.
The barrel adopts arc shape connections and its well polished.
The machine is used for mixing the powder state and grain state materials to achieve high uniformity in the pharmaceutical, chemical, food, light-industry, electronic, mechanical, metallurgical, nation defense industries and other science and technology institue.
| spec | SWH-5 | SWH-15 | SWH-50 | SWH-100 | SWH-200 | SWH-400 | SWH-600 | SWH-800 |
| volume of barrel(L) | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 |
| charge volume (L) | 4.5 | 13.5 | 45 | 90 | 180 | 360 | 540 | 720 |
| charge weight(kg) | 1.5-2.7 | 4-8.1 | 15-27 | 30-54 | 50-108 | 100-216 | 150-324 | 200-432 |
| rotation speed of main shaft(r/min) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-13 | 0-10 |
| motor power(Kw) | 0.25 | 0.37 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 |
| size LxWxH(mm) | 600×1000 ×1000 | 800×1200 ×1000 | 1150×1400 ×1300 | 1250×1800 ×1550 | 1450×2000 ×1550 | 1650×2200 ×1550 | 1850×2500 ×1750 | 2100×2650 ×2000 |
| weight(kg) | 100 | 200 | 300 | 800 | 1200 | 1200 | 1500 | 1700 |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
