Product Description

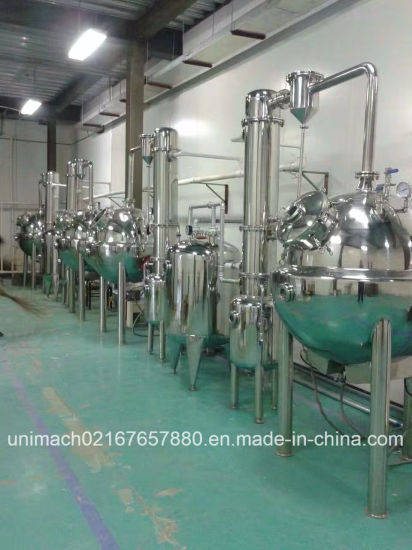

QN Series ball Concentrator
Applications:
This equipment is suitable for evaporating and concentrating liquid material and recycling the organic solvent and cream in pharmaceutical, foodstuff and chemical industry etc.
Feature:
1. This equipment mainly is consist of concentrated tank, condenser, storage tank etc. The roundness tank is easy to clean and discharge the material.
2. The equipment adopts vacuum decompressed concentration and the concentration proportion can get above to1.4.
3. As for very stick material, we can equip with mixing device as well as turnover discharging the material.
| model | QN-200 | QN-500 | QN-700 | QN-1000 | QN-1500 | QN-2000 |
| evaporating capacity(kg/h) | 60 | 110 | 150 | 200 | 300 | 400 |
| volume(L) | 200 | 500 | 700 | 1000 | 1500 | 2000 |
| steam pressure(MPa) | <0.1 | |||||
| vacuum degree(Mpa) | -0.08 | |||||
| heating area(m2) | 0.9 | 1.5 | 2.1 | 2.7 | 3.5 | 4.0 |
| cooling area(m2) | 1.7 | 3.4 | 5.0 | 7.0 | 8.5 | 10 |
| dimension(m) | 1.7*0.9*2.3 | 2.3*1.1*2.6 | 2.3*1.3*2.6 | 2.7*1.5*2.9 | 3*1.6*3 | 3.1*1.8*3 |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
