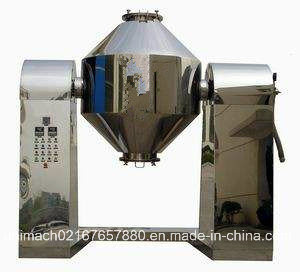

Rotary Double Cone Blender Mixer Machine (SZH)

Quantity:
Double SZG Double Cone Rotating Vacuum Dryer

The Rotary Cone Dryer Machine

The Rotary Cone Dryer Machine

The Rotary Cone Dryer Machine

Applications
The drier is suitable for drying and mixing powder or granule raw material of pharmaceutical industry, foodstuff industry and chemical industry and so on. Especially it is suitable for the following raw materials that have special requirements:
Thermal sensitive raw material that can not in high temperature;
Raw materials that are easy to be oxidezed or to be dangerous;
Raw materials in which the solvent needs to recover and there is toxic gases;
Raw material that have the requirement of containing rather low content of residue volatized materials;
Raw materials that need to mix evenly and fully.

Description
Double cone rotating vacuum drier is a new drier that integrates mixing and drying in the one body and equips with condensor and accumn pump. Therefore the vacuum drier is formed (If the solvent does not recover, the condensor may be not used). The drier is advanced in design, simple in inner structure, easy for cleaning, to discharge all raw material, convenient in operation, lowing the strength of labor and improving work environment. Meanwhile raw material is rotating accompanying with the rotating of container, raw materials can not be accumlated onto the wall of container, so it has high efficiency heat transfer and high speed drying which save energy. Raw materials are dried evenly and have good quality. It can widely apply to dry raw materials of pharmaceutical industry, chemical industry, foodstuff industry, dyestuff industry and so on. The equipment is in conformity with the requirements of "GMP".

Principle
Model SZG double cone rotating vacuum drier has double cone rotating tank. Under the state of vacuum inside the tank, pass steam or hot water into to jacker for heating. The energy can contact with the damp raw material through the inner wall. The vaporized steam can be pumped out through vacuum exhaust pipe when the damp raw material absorbed heat. Because the inner of tank is in the state of vacuum and the raw material is turned over all the time caused by the rotating of tank, the dry speed of raw material is quickened and drying efficiency is raised too and the purpose of uniform dry can be raised.
Features
When oil is used to heat, use automatic constant temperature control. It can be used for drying biology products and mine. Its temperature of operation can be adjusted from 20~200° C and within ± 2° C.
Compared with ordinal drier, its heat efficiency will be over 2 times;
The heat is indirect. So the raw material can not be polluted. It is in conformity with the requirement of GMP. It is easy in washing and maintenance.

Item type
name unit 100 200 350 500 750 1000 1500 2000 3000 4500 6000
total volume L 100 200 350 500 750 1000 1500 2000 3000 4500 6000
working volume L 50 100 175 250 375 500 750 1000 1500 2250 3000
heating area m 2 1.16 1.5 2 2.63 3.5 4.61 5.58 7.5 9.6 13.8 18.8
speed r/min 6 4 4 4
power kW 0.75 1.1 1.5 1.5 2 3 3 4 5.5 7.5 11
height of rotating frame mm 1810 1910 2090 2195 2500 2665 2915 3055 3330 4210 5350
total weight kg 550 700 900 1100 1200 1300 1500 2000 3000 4000 5200
design pressure inside tank MPa -0.09-0.096
design pressure inside jacket MPa 0.3


Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G

FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
