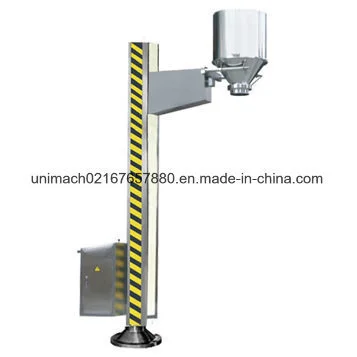

SLG Series Pharma Lifting Feeder (Stationary Type)
Applications:
SLG Series Lifting feeder (Stationery Type) is mainly used in conveying and material feeding of dust powder and solid particle materials in pharmaceutical enterprises. It is widely compatibly used with powder mixer, rapid mixer granulator, tablet press, coating machine, capsule filling machine and packaging machine. Meanwhile this machine can effectively reduce dust powder and cross contamination and greatly reduce labor intensity. It serves as ideal material conveying for pharmaceutical factories and is also widely used in food chemical and other light industries.
Features:
A. Made of Austenitic stainless steel. There is no dead angle no concave-convex face.
B. Applying specially-made butterfly valve with no dead angle no remnant.
C. It make use of sealing device for the hopper to prevent dust emission and mateerial
Leakage. The dust and cross contamination are efficiently controlled.
D. Both inner and outer surfaces are all polished to high quality, it is easy to clean.
E. Auto-controlled discharging valve is optional as percustomer's requirement.
| Model | Main dimensions | Machine weight (kg) | net loading capacity(kg) | Power | |||||||
| L | W | H | H1 | H2 | L1 | DN | D | kw | |||
| SLG-50 | 1835 | 600 | 2200 | 2600 | 3010 | 950 | 150 | φ470 | 400 | 50 | 0.75 |
| SLG-100 | 1935 | 600 | 2200 | 2600 | 3150 | 1050 | 150 | φ600 | 450 | 100 | 1.1 |
| SLG-150 | 1935 | 600 | 2200 | 2600 | 3500 | 1180 | 150 | φ600 | 550 | 150 | 1.5 |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
