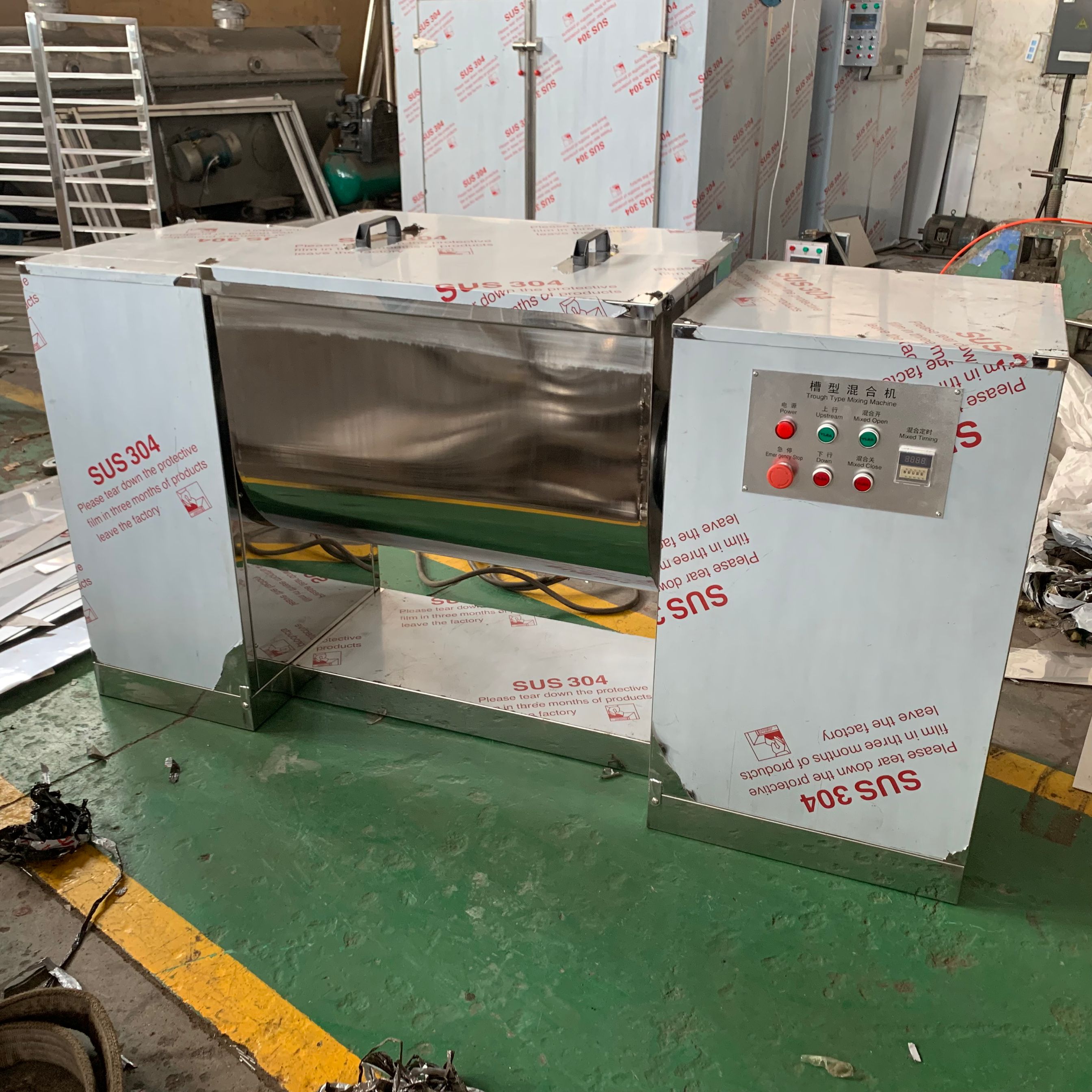

SCH Double Paddle Trough Mixer
Specifications
1. The mixer tank is made of SUS304
2. Mixing powdery or paste material
3. CE and ISO approved
4. Double S type paddle
Main Application:
The mixer is horizontal double paddle trough type mixer which is widely used in pharmaceutical, chemical and foodstuff industries for mixing powdery or paste material especially for big viscosity and high homogeneous material.
Working Principle:
The machine is to let the stype paddle make opposite movement to impulse the material and mix by the active and passive shaft. The machine is made of stainless steel. You can set the mixing time and the machine will stop automatically. It is discharging by electromotion which will ease the working intensity of workers. The machine wil reach the high homogeneous mixing.
model | SCH-100 | SCH-200 | SCH-400 | SCH-500 | SCH-600 |
capacity(L) | 50-70 | 100-140 | 200-280 | 250-350 | 300-420 |
stirring motor(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
discharging motor(kw) | 0.75 | 1.1 | 1.5 | 2.2 | 2.2 |
active shaft rotary speed(r/min) | 15 | 12 | 12 | 12 | 12 |
passive shaft rotary speed(r/min) | 21 | 18 | 18 | 18 | 18 |
overall dimension(mm) | 1750×560×1100 | 2060×660×1250 | 2320×760×1500 | 2500×760×1500 | 2620×780×1620 |
weight(kg) | 800 | 1000 | 1200 | 1300 | 1600 |
More Pictures
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
