Small Softgel Paintball Encapsulation Machine Production Line


Main features of the equipment:
1. It adopts large-size touch screen and has fault diagnosis function, which can store various operating parameters and reserve network interface.
2. The mold adopts aviation aluminum alloy and has a long service life. Optimized design, the number of cavities is large, and the mesh adhesive rate is low.
3, rubber drum, rubber smearing system and mold parallel design, high stability. It adopts independent motor variable frequency drive, full bearing design, high assembly precision, convenient adjustment, low noise and stable operation.
4, the rubber is micro-lubricated, truly no-clean, improve efficiency and save money.
5, rubber cooling using a separate split professional chiller, low energy consumption, high cooling efficiency.
6, the lower pill uses the net bucket, and there is a cold wind pre-determined type, so that the plastic pill molding is more beautiful, and the transportation is more reasonable.
7. The material bucket is adjustable in temperature, stirrable and with speed regulation, and is more suitable for suppressing Chinese medicine suspension.
8, small footprint, full-featured, very suitable for small and pilot test in the laboratory, but also small batch production.

No. Model and name Weight(kg) Power(kW) Dimensions (mm) Notes

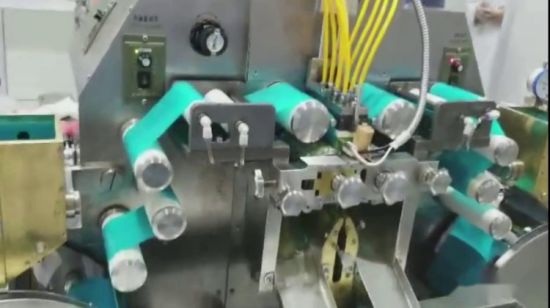

1 HB0.8-110CSoft gelatin encapsulation machine
(with one set of mould)
700 3.6 150781700 Gelatin liquid,material liquid is automatically controlled,
each includes electric cabinet,chiller(compressor is imported from France),
conveyor,one set of mould.
It is automatically controlled by PLC+touch screen,can be connected into Internet.

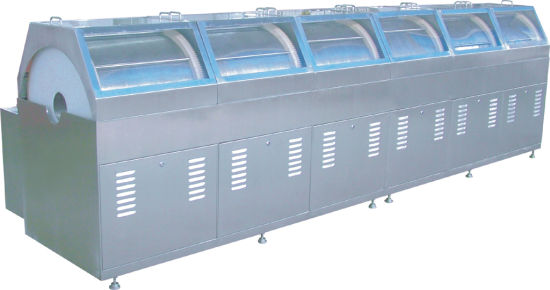

2 ZL-580A
Tumble dryer
400 2.7 2080×880×1400 Stainless steel 304 plate with mesh hole,one group 2 sections rotary cage combined (each section has one fan).
3 BW-80
Jacketed gelatin storage tank
100 1.5 φ520×1175 Three layers jacket and made of stainless steel 304.
Material tank
φ500×1000 Made of stainless steel 304
5 HJ-150B
Gelatin melting tank
450 7.1 φ800×2180 Flange connection,stainless steel 304,three layer,discharge by air pressure and no need platform,electricity heating with electric cabinet.

6 SK-0.5
Water ring vacuum pump
34 1.5 480×180×

7 Material preparation tank
450 4.15 φ800×2010 Flange connection,three layer jacket,stainless steel 304,discharged by air pressure and no need platform,electricity heating with electric cabinet.

8 JM-130 vertical
Colloid mill
320 11 Φ550x465x1168 Water cooling
9 Drying tray 1.62
10 Trolley for trays 17
Stainless steel 304
11 FS-100
Gelatin pulverizer
220 3 1180×540×630 Stainless steel 304
12 Three feet Centrifuge SS-450 250 1.5 980×730×650 With explosion-proof motor(EX motor)
13 JYT-A
Inspection table
65 0.06 1200×550×1200 Stainless steel 304
