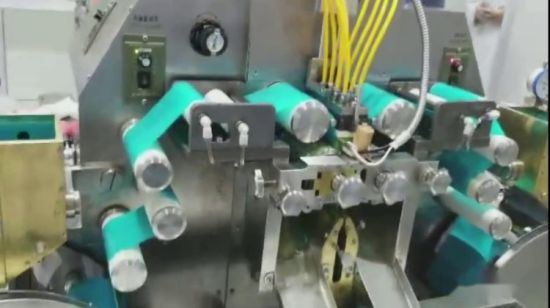

Soft Softgel Capsule Gelatin Encapsulation Making Filling Sealing Machine/Softgel Productioin Line
Softgel Encapsulation Making Filling Machine
Applications and description
Our softgel encapsulation machine is used for producing all kinds of soft capsules with diferent size, shape and coclor.
Softgel machine can be used to produce all kinds of softgel: Oval, Oblong, Round, Suppository. This softgel machine can also be used to make paintballs and bath oil ball.
Softgel encapsulation machine is a water cooling type which is designed and manufactured on the basis of absorbing the advanced technology around the world. Owing to the high productivity, exact filling, stable quality, high finished product rate, it is widely used for producing all kinds of soft capsule with different size, shape and color in the field of medicine, health products, cosmetic and etc.
Features
1. Advanced water cooling system eliminates the dust contamination.
2. Injecting medicine part adopts advanced linearity driving system.
3. Advanced pressure automatic tight model and automatic elevator system in the injecting part.
4. The capsule conveyer belt adopts food-grade belt authorized by FDA which is non-toxic, non-sticky, and easy to wash.
5. Optimized designed mould is made of high quality aviation alloy by high precision numerical control process to ensure the mould has good using life.
6. Automatic gelatin and material supply system reduce workers labor intension and improve the working environment, which accords with the requirement of GMP
7. The shape and drying rotary cage is made of stainless steel net sheet, which is no dead corners and easy to wash.
8. All the electric parts adopt well-known brand in the world, the performance is stable.
Technical specification | ||
Model | RG2-200 | |
Roller die rated speed | 0~7r/min | |
| Speed regulation method | AC inverter speed regulating | |
| Filling difference | ±2% | |
Roller die size | Φ103×200mm | |
Single piston feeding volume | 0~1.5ml | |
motor | 380V 50Hz 3 phase, 1.5KW,1440rpm | |
| gel wheel motor power | 100WX2 | |
| Push mesh gel motor power | 200W(speed can be regulated) | |
| Stirrer motor power | 60W(speed can be regulated) | |
| Heating tube power | 260WX6piece | |
| Feeding gel tube heating cover power | 60W | |
Noise | <75dBA | |
Dimension | 1940×1150×1860mm | |
Net weight | 1200Kg | |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What’s the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment, and D/P is acceptable as well.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
