Specifications

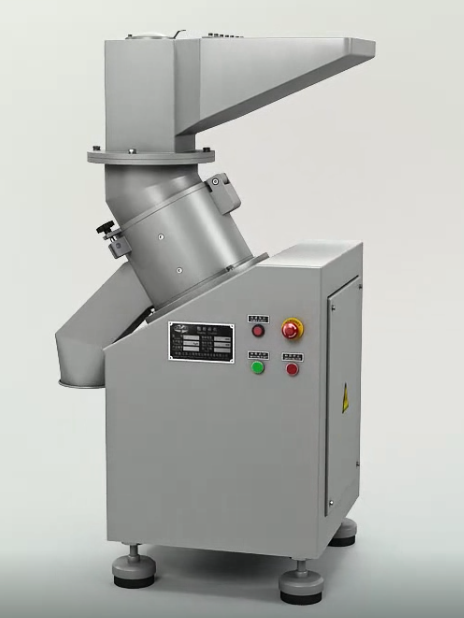

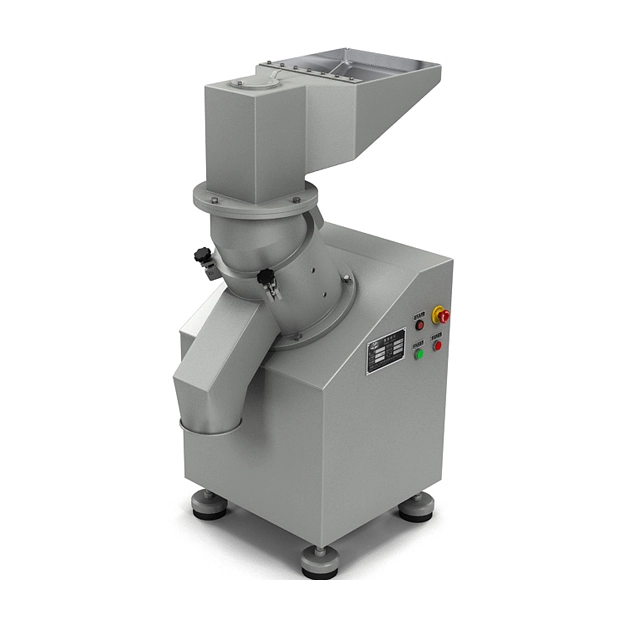

1. Universal pulverizer
2. Made of SS304/SS616L
3. Can have Dust Absorption
4. Fineness of powder 20-120 mesh
Working Method:
The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials. The size of granules can be achieved by changing of the screen. The machine has the features of easystructure, solid, stable running and good efficiency.
The crushed material is discharged directly from the grinding chamberof the main frame. In addition, the whole machine is made of stainless steel, with smooth inside walls to avoid powder accumulation on the inside walls. Those harmaceutical, chemical and food stuff products from the machine are in accordance with national requirement, achieving GMP standard.
Model | 130 | 180 | 200 | 300 | 400 | 600 |
Capacity(kg/h) | 3-10 | 10-30 | 20-150 | 30-300 | 40-800 | 60-1200 |
Speed of principal axis(r/min) | 6000 | 6000 | 4500 | 3800 | 3400 | 2600 |
Size of input granules(mm) | <3 | <5 | <6 | <10 | <12 | <15 |
Fineness of products (mesh) | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 |
Power(kw) | 1.1 | 2.2 | 4 | 5.5 | 7.5 | 15 |
Weight(kg) | 65 | 80 | 250 | 320 | 550 | 600 |
Overall size (L×W×H)(mm) | 650*420*850 | 600×500 ×1000 | 550×600 ×1250 | 600×750 ×1450 | 750×900 ×1550 | 950×1000×1850 |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
