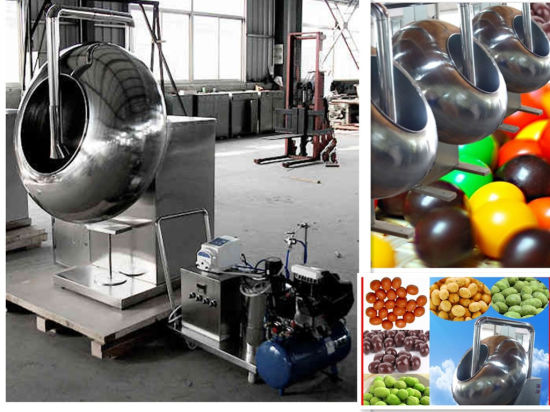

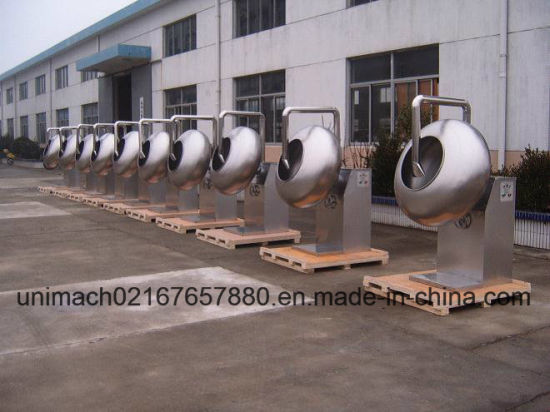

This sugar coating machine used to sugar coating the tablets and pills for pharmaceutical and food industry. It is also used for rolling and heating beans and edible nuts or seeds.
The sugar coating machine whose round pot is elevated, the heater such as gas electrical heater can placed directly under the pot. A separated blower with electrical heater is provides with the machine. The pipe of the blower stretches into the pot for heating of cooling purpose.
This sugar coating machine can adjusted the capacity easily.
Main Technical Specifications
| Type | Capacity (Kg/batch ) | Angle of inclination | Motor power (Kw) | Fan power (w) | Spray gun | Overall dimension (mm) | Heating power (Kw) | Weight (Kg) | Rotary speed (rpm) |
| BY400 | 2~5 | 15-45° | 0.55 | 40 | RA-C1 | 800×800×1200 | 1KW | 200KG | 0-46 |
| BY600 | 8~15 | 15-45° | 0.75 | 100w | RA-C1 | 1190×975×1365 | 2kw | 340kg | 0-40r/min |
| BY800 | 30~50 | 15-45° | 1.1 | 200 | According to customer requirement | 1000×1000×1550 | 3KW | 400KG | 0-32 |
| BY1000 | 50~70 | 15-45° | 1.5 | 200 | 1200×1200×1600 | 4KW | 450KG | 0-32 | |
| BY1250 | 80~150 | 15-45° | 2.2 | 370 | 1350×1350×1600 | 6kw | 800KG | 0-28 |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
