Tq-D Series Inverted Cone Herb Extractor
Specifications
1. Material: SS316L / SS304
2. Design pressure inside pot(Mpa): 0.09
3. Jacket design pressure(Mpa): 0.3
4. Herbal extractor
Application
The device is used to extract the herb, flower, seed, fruit, fish etc. It can be used for food and chemical industries in normal pressure, micro-pressure, water frying, heat cycling, cycling leaking, redotlent oil extract and organically solvent recycle.
Feature and advantage compared to other shape extractor

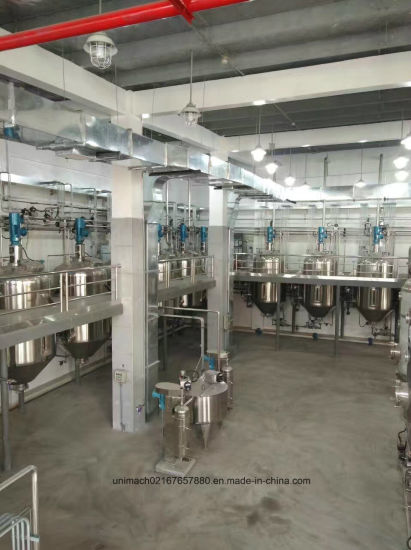

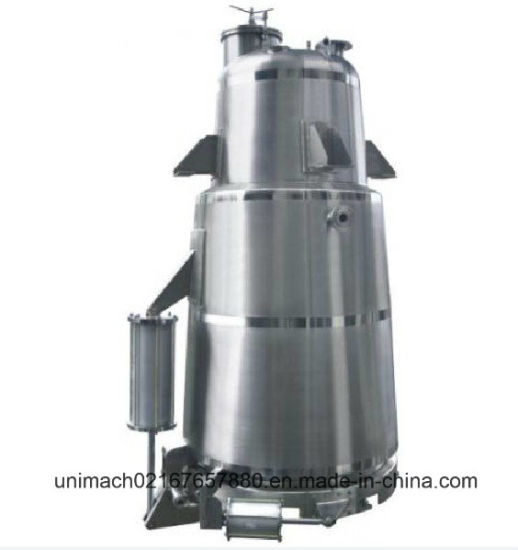

The appearance is small at the top and big at the bottom, with the sape of upside-down taper(inverted cone). The most prominent feature is convenient residue discharging and lower construction space.

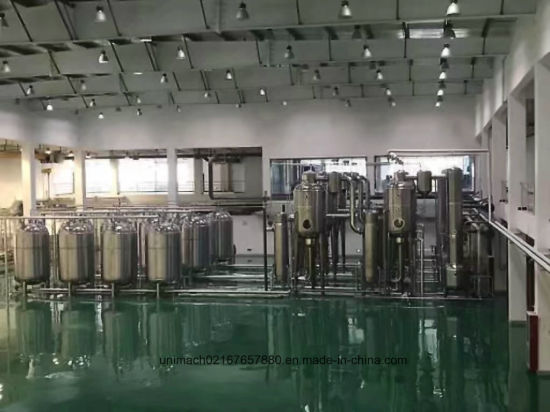

Description
The whole process extractionprocess is in an airtight condition and finish extraction and concentration at one time completely.
| Model and specification | TQ-D0.5 | TQ-D1 | TQ-D2 | TQ-D3 | TQ-D4 | TQ-D6 | TQ-D8 | TQ-D10 |
| Volume (L) | 600 | 1200 | 2300 | 3200 | 4300 | 6300 | 8500 | 11000 |
| Design pressure inside pot(Mpa) | 0.09 | |||||||
| Jacket design pressure (Mpa) | 0.3 | |||||||
| Material inputting diameter (mm) | 400 | 500 | ||||||
| Heating area (m2 ) | 2.4 | 3 | 4.7 | 6.8 | 8 | 10 | 12 | 12 |
| Condensing area (m2 ) | 3 | 4 | 5.4 | 8 | 10 | 10 | 15 | 18 |
| Cooling area (m2 ) | 1 | 2.2 | 3 | |||||
| Filtering area (m2 ) | 0.25 | 0.3 | ||||||
| Diameter of charging opening(mm) | 600 | 800 | 1000 | 1200 | ||||
| Steam cost (kg/h) | 285 | 346 | 570 | 660 | 718 | 903 | 1140 | |
| Water cost(T/h) | 2.1 | 2.1 | 2.5 | 4.2 | 4.5 | 5.5 | 6.7 | 6.7 |
| Heating gas orifice (mm) | 32 | 32 | 32 | 40 | 40 | 50 | 50 | 50 |
| Gas exhausting orifice (mm) | 100 | 100 | 100 | 125 | 125 | 150 | 150 | 150 |
| Condensed water orifice (mm) | 40 | 40 | 40 | 50 | 50 | 50 | 65 | 70 |
| Motor power (KW) | 2.2 | 2.2 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 |
| Agitating speed (r/min) | 36 | |||||||
1.Nomally shipping steps:

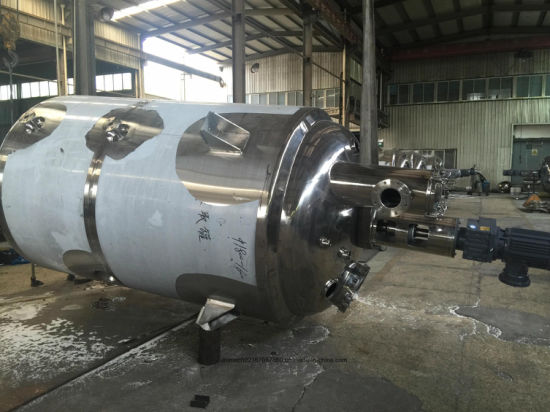

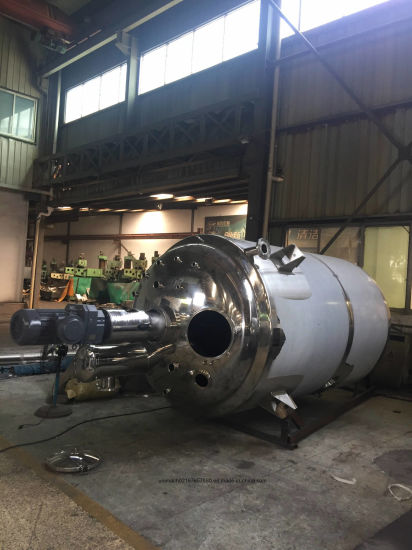

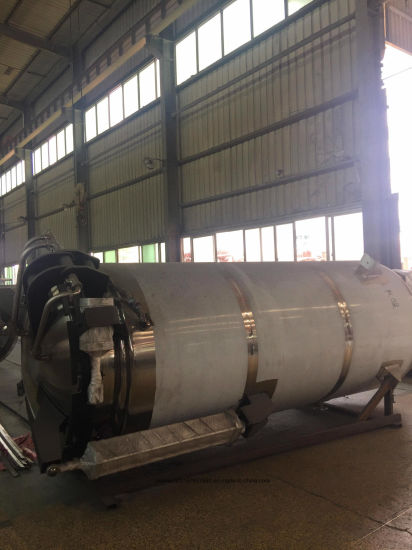

2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
