Tq Series Multi-Functional Extracting Tanks

Quantity:

Applications

The equipment is suitable for Chinese Traditional heb Medicine, foodstuff and chemical industry, like herbal
Medicine dynamic extracting, stevia dynamic extracting and other natural ingredients.

Detailed Product Description

The equipment can be used in Chinese Traditional herb Medicine, foodstuff and chemical industry. It can be applied to various processes as follows: Drug-decocting under normal pressure or low pressure, digeratur, thermal refluxing, forced circulation, infiltration, extraction of aromatic oil, reclaim of organic solvent and etc. This device features higher efficiency, time-saving quality and high content of liquid drug in the course of extraction. The equipment employs the types of impeller blade and paddle blade as its agitation system. Using excellent materials, the device is widely applied to pharmacy, foodstuff and chemical industry.

Feature:

It has stirring motor and it has better extraction effect than static extractor. Effection speed is quicker than static extractor. So extraction time is shorten and save energy consumption.

Model unit TQ0.5 TQ1.0 TQ2.0 TQ3.0 TQ4.0 TQ5.0 TQ6.0 TQ8.0
Total volume L 560 1300 2300 3600 4400 5560 6500 8900
design pressure inside tank Mpa 0.09 0.09 0.09 0.09 0.09 0.09 0.09 0.09
design pressure inside jacket Mpa 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
heating area m2 2.1 4 5 6.8 7.3 8.5 9.5 11
condensing area m2 3.0 5.0 5.0 8.0 8.0 10.0 10.0 12.0
cooling area m2 1.0 1.0 1.0 1.0 1.0 1.5 1.5 1.5
filtering area m2 0.25 0.25 0.25 0.25 0.25 0.50 0.50 0.50
residue discharging door mm 600 800 800 800 1000 1000 1000 1200
manhole mm 300 300 400 400 450 450 450 500
mixing power kw 1.5 3.0 4.0 5.5 5.5 7.5 7.5 7.5
mixing speed rpm 63 63 63 63 63 63 63 63
steam consumption kg/h 100 180 225 300 330 380 420 495
cooling water consumption T/h 2.6 4.2 4.2 6.8 6.8 8.5 8.5 10

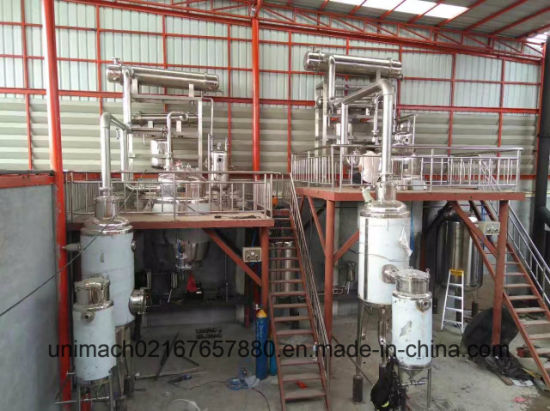

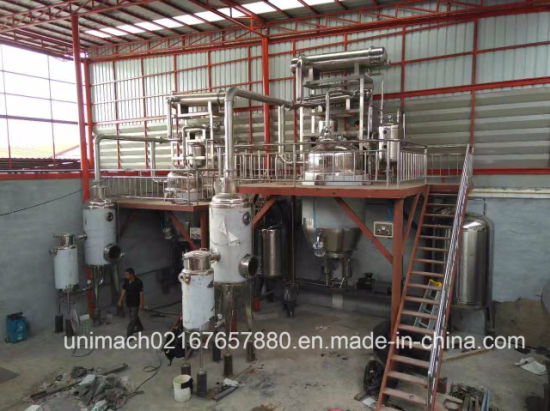

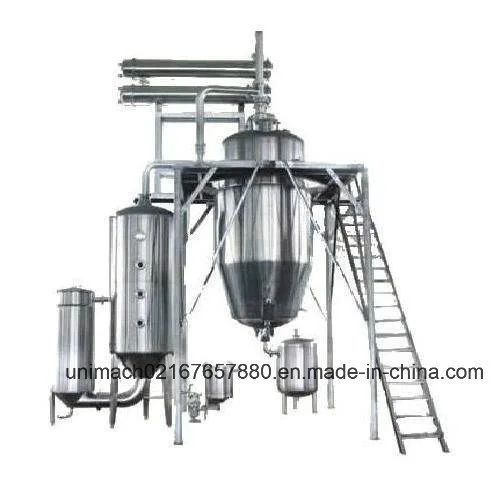

Tq Series Multi-Functional Extracting Tanks

Tq Series Multi-Functional Extracting Tanks

Tq Series Multi-Functional Extracting Tanks

Tq Series Multi-Functional Extracting Tanks

Tq Series Multi-Functional Extracting Tanks


Tq Series Multi-Functional Extracting Tanks





Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G



FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
