Packaging & Delivery
Packaging Detail: Export wooden package
Delivery Detail: Within 50 working days
Specifications
Multifunctional Extractor
1. Stainless steel SUS303, SUS316L
2. Extraction
3. Food, beverage, dairy, pharmaceutical processing

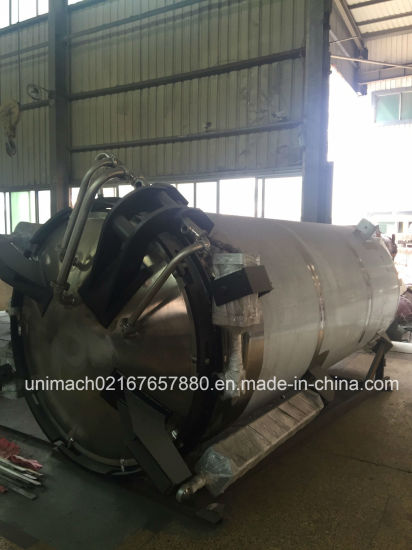

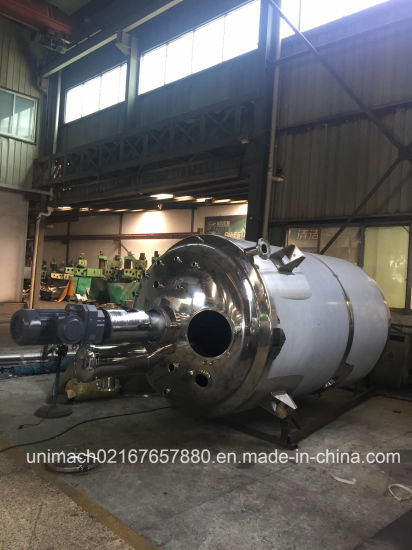

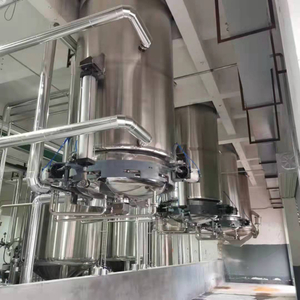

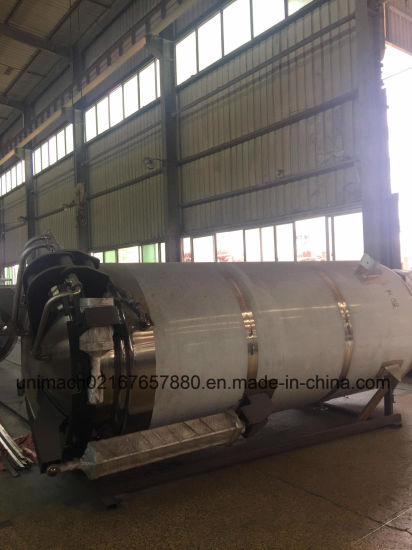

TQ-Z multifunctional extracting tank can be used in Chinese medicine, food and chemical industries to normal pressure, micro-pressure, water frying, warm soaking, heat cycling, cycling leaking, redolent oil extract and organically solvent recycle. The facilities have the advantages such as high efficiency and simple operating; The CIP cleaning system is in accordance with GMP standards.
Accessory part of Extracting Tank
TQ-Z multifunctional extracting tank is composed by defoaming machine, congealing machine, cooing machine, filter, oil water separating device and medicine pumps.
TQ-Z feature and advantage
It takes smaller space, so it is widely used in extracting workshops. Bottom heating is provided on the residue discharging door, which makes the extracting of medicine materials more complete
| Specification/Model | TQ-Z-1.0 | TQ-Z-2.0 | TQ-Z-3.0 | TQ-Z-6.0 | TQ-Z-8.0 | TQ-Z-10 |
| Volume(L) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 |
| Designed pressure of tank (Mpa) | 0.09 | |||||
| Designed pressure of jacket (Mpa) | 0.09~0.3 | |||||
| Pressure of compressed air(Mpa) | 0.6~0.7 | |||||
| Diameter of charging port(mm) | 400 | 400 | 400 | 450 | 500 | 500 |
| Heating area(mm) | 3.0 | 4.7 | 6.5 | 8.5 | 10 | 12 |
| Condensation area(mm) | 5 | 6 | 8 | 10 | 12 | 14 |
| Cooling area(mm) | 1 | 1 | 1 | 2 | 2 | 3 |
| Filter area(mm) | 3 | 3 | 3 | 5 | 5 | 6 |
| Diameter of slag port(mm) | 800 | 800 | 800~1000 | 1000~1200 | 1200~1400 | 1400~1600 |
| Energy consumption(Kg/h) | 245 | 325 | 345 | 645 | 720 | 850 |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
