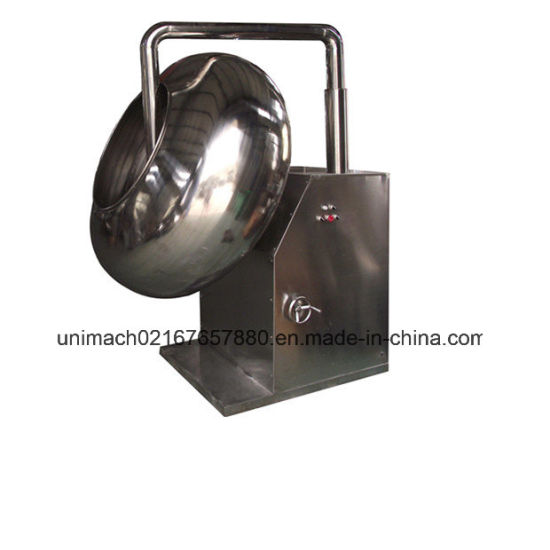

Water Chestnut Simplified Sugar Tablet Chocolate and Film Coating Machine 1

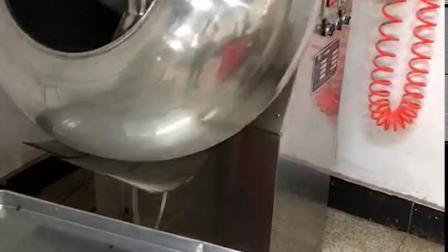

Water Chestnut Simplified Sugar Tablet Chocolate and Film Coating Machine 2

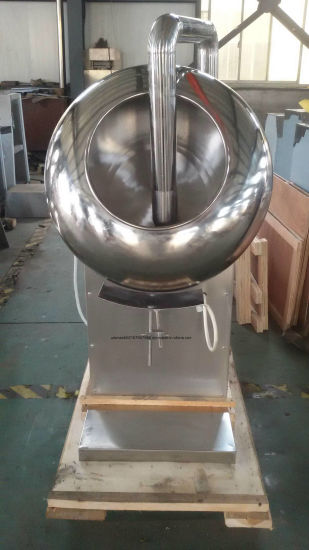

Water Chestnut Simplified Sugar Tablet Chocolate and Film Coating Machine 3
Water Chestnut Simplified Sugar Tablet Chocolate and Film Coating Machine 4
Water Chestnut Simplified Sugar Tablet Chocolate and Film Coating Machine 5
Water Chestnut Simplified Sugar Tablet Chocolate and Film Coating Machine 6
Water Chestnut Simplified Sugar Tablet Chocolate and Film Coating Machine 7
Water Chestnut Simplified Sugar Tablet Chocolate and Film Coating Machine 1
Water Chestnut Simplified Sugar Tablet Chocolate and Film Coating Machine 2
Water Chestnut Simplified Sugar Tablet Chocolate and Film Coating Machine 3
Water Chestnut Simplified Sugar Tablet Chocolate and Film Coating Machine 4
Water Chestnut Simplified Sugar Tablet Chocolate and Film Coating Machine 5
Water Chestnut Simplified Sugar Tablet Chocolate and Film Coating Machine 6
Water Chestnut Simplified Sugar Tablet Chocolate and Film Coating Machine 7

Water Chestnut Simplified Sugar Tablet Chocolate and Film Coating Machine

    oops...!

    no product data.

    Go to homepage

    Product Application

    Introduction and Features

    This machine is used to carry out sugar coating and film coating to the core of Chinese traditional and Western medicine tablets. It integrates strong power, weak power, hydraulic and pneumatic. It is new type equipment that improved on the basic of original common type sugar coating machine.

    It is composed of the mainframe (original sugar coating machine), controllable normal temperature hot air system, automatic liquid supply and air supply spraying system, etc. The motor adopts frequency converter, using high automation gun sprays the coating accessories to tablets surface by the method of automatic electrical control. Meanwhile, the tablets will make continuous and complex track movement in the coating pan; let the coating solution cover the tablet core evenly. The controllable normal-temperature hot air system in the pan will dry the tablets at the same time; let the tablets rapidly form a firm, fine, complete and smooth surface film.

    Automatic liquid supply vehicle is used for heating and insulation the coating solution that requires higher temperature and the temperature is also adjustable. Barrel is lined with heat insulation rock wool, even the heating temperature achieves 80-90ºC, but the outer wall of barrel still keeps normal temperature. The liquid supply vehicle is equipped with peristaltic pump and three-way magnetic valve, which can make the two spray gun work at the same time. It is also equipped with pneumatic stirring motor that can continually stir coating solution, and the speed of stirring is adjustable.

    There is also wheel installed at the bottom of vehicle so that users can move it randomly.

    This machine has advantages of simplified operation, smooth, fine and bright surface, saving accessories and convenient maintenance. It is the ideal equipment for tablet film coating.



    Specifications
    Model BY-1500
    capacity 150~250kg/batch
    Angle of bow 15°-45°
    Motor power 5.5kw
    Fan power 370w
    Revolution 0-20r/min
    Electric heating power 6KW(according to customer's requirements)
    Weight 900Kg
    dimension 1500×17622600mm

    Water Chestnut Simplified Sugar Tablet Chocolate and Film Coating Machine


    Packaging & Shipping

     1.Nomally shipping steps:

     S45PNZ%`OL`M6O8H}V(SDJ

    2.Our packing and shipping:

    (4[KDGL_NF%E6%2]D`4JYP

    Our Services

     0OC}YRDYXP])TO]QMXZ48IJ

         Pre-Sales Service:



             * Inquiry and consulting support.



             *Quickly reaction.



              *Factory inspection available anytime.





          After-Sales Service:



             *Prompt technical support



            *Engineers available to service machinery overseas



            *Installation &commissioning,good training for customers.





    Our customer

     KE1PX$_SO]LLORZU3`DH8UW



    Certifications

    [$X~Z{0)[{$PW5F}H666N6M



    Company Information

    RX2]L7{%NOW0`YXF9~)M{_G

    FAQ

     Q1.What's your delivery method?

     A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



    Q2.What products can you provide?

    A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



    Q3. What's the payment terms?

    A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



    Q4.How do you ensure your product quality?

    A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



    Q5:Does the machine power voltage meet buyers' factory power source?

    A5: We can do it as your request.



    Q6: Is it difficult to install the machine ?

    A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

    For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

    You will get videos and instructions about installation of machine from us.
