Application:

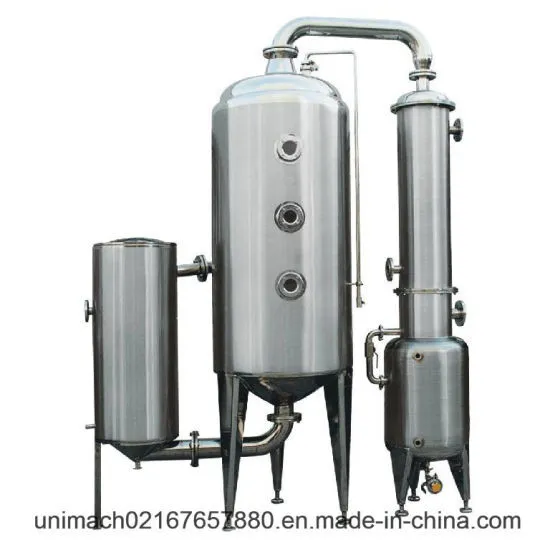

This equipment is suitable for evaporation and concentration the liquid material and recycling the organic solvent in pharmaceutical, foodstuff and chemical industry, etc. It is specially suitable for low temperature concentration for milk, juice and the majority heat-sensitivity material.
Feature:
1. This equipment is consist of heater, evaporator, condensate recycling device, etc. Compare with the traditional equipment, it's with less investment, high efficiency and low consumption.
2. The whole process is in a vacuum condition in order to avoid pollution. It has fast evaporating speed and the concentration proportion can get above 1.2.
3. The top of heater is with fast-opening device so that is easy to clean. The equipment can equip with automatic drainage system in order to lighten the labor intensity.
Parameters/Model | WZ-300 | WZ-500 | WZ-750 | WZ-1000 | WZ-2000 | WZ-3000 |
Evaporating capacity (kg/h) | 300 | 500 | 750 | 1000 | 2000 | 3000 |
Heating area(m2) | 5.2 | 8 | 12 | 16 | 32 | 51 |
Condensing area(m2) | 6 | 11 | 15 | 20 | 40 | 65 |
steam consumption(kg/h) | 330 | 550 | 820 | 1100 | 2200 | 3300 |
Cooling water consumption (t/h) | 6 | 10 | 15 | 20 | 40 | 60 |
Overall dimension(m) | 2.5x1x3.2 | 2.7x1x3.5 | 3x1.2x3.7 | 3.2x1.2x4 | 4x1.2x4.7 | 5x1.4x5 |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
