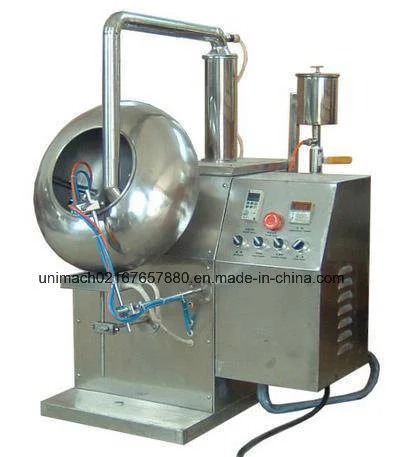

by-400 Coating Machine with Spray Gun, Inner and Outer Heating System
Application:
It is used to coat tablets and pills with sugar in pharmaceutical and food
Industry such as candy, chewing gum, chocolate and etc.
These machines sugarcoat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds. As its feature, the sugarcoating round pot is elevated with a elevation 30° To the horizontal, the heater such as gas or electrical heater can placed directly under the pot. A separated blower with electric heater is provided with the machine. The pipe of the blower stretches into the pot for heating or cooling purpose. The thermal capacity can be selected in two levels.
| Type | Capacity (Kg/batch ) | Angle of inclination | Motor power (Kw) | Fan power (w) | Spray gun | Overall dimension (mm) | Heating power (Kw) | Weight (Kg) | Rotary speed (rpm) |
| BY400 | 2~5 | 15-45° | 0.55 | 40 | RA-C1 | 800×800×1200 | 1KW | 200KG | 0-46 |
| BY600 | 8~15 | 15-45° | 0.75 | 100w | RA-C1 | 1190×975×1365 | 2kw | 340kg | 0-40r/min |
| BY800 | 30~50 | 15-45° | 1.1 | 200 | According to customer requirement | 1000×1000×1550 | 3KW | 400KG | 0-32 |
| BY1000 | 50~70 | 15-45° | 1.5 | 200 | 1200×1200×1600 | 4KW | 450KG | 0-32 | |
| BY1250 | 80~150 | 15-45° | 2.2 | 370 | 1350×1350×1600 | 6kw | 800KG | 0-28 |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
