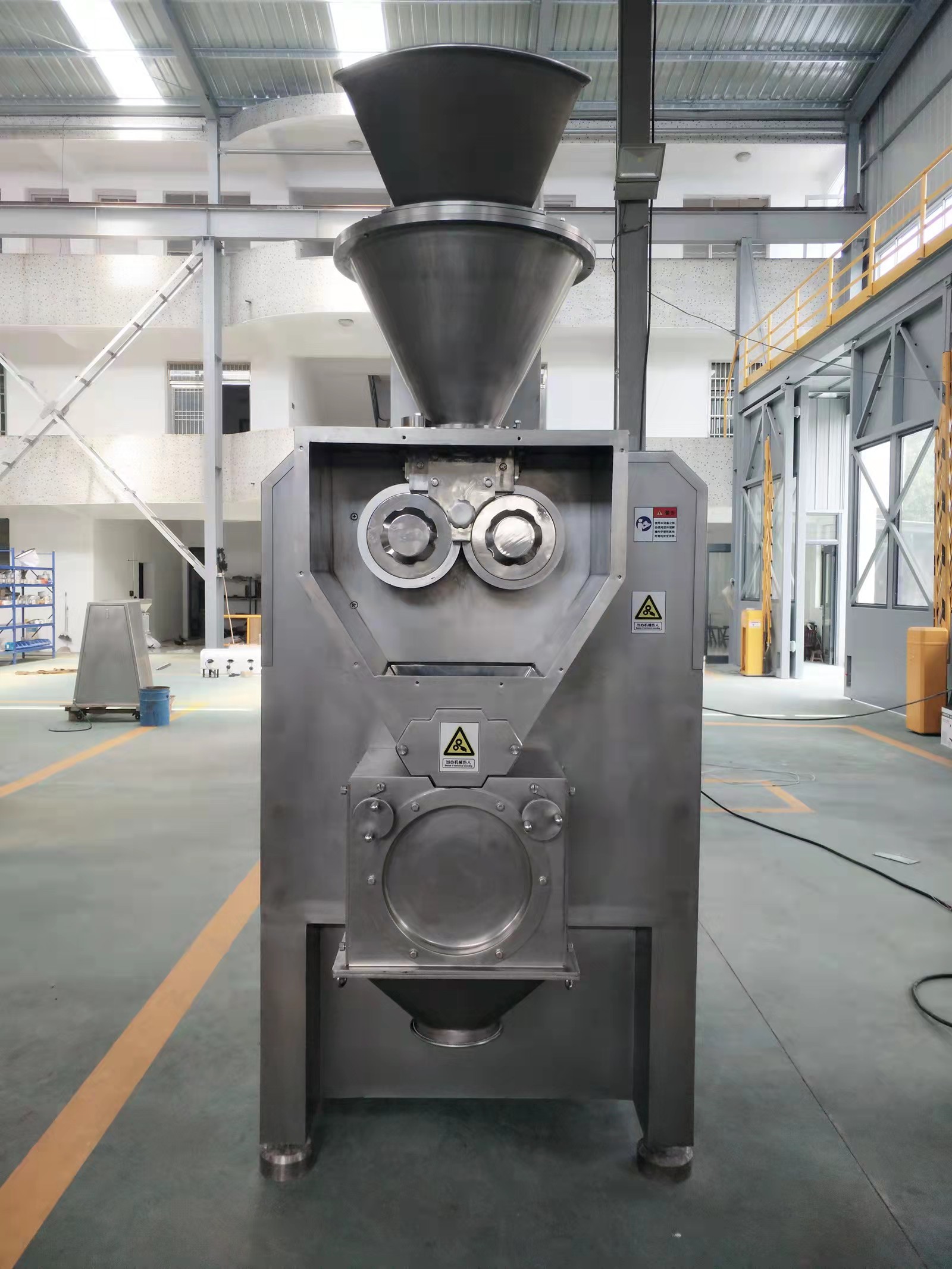

Environment-friendly and clean dry granulator machine
Product features
No additives required, dry powder can be directly granulated;
The particle strength can be adjusted by adjusting the pressure of the rolling mill to control the strength of the finished product;
Circular operation, achieving continuous production and high output of finished products;
The material is mechanically compressed into shape without the need for any additives, ensuring product purity.
Dry powder is directly granulated without the need for subsequent drying processes, which is more conducive to the connection and transformation of existing production processes.
The particle strength is high, and the increase in packing density is more significant than other granulation methods, especially suitable for increasing the packing density of products.
Suitable for a wide range of raw materials, the particle strength can be freely adjusted according to different materials.
Compact structure, convenient maintenance, simple operation, short process flow, low energy consumption, high efficiency, and low failure rate.
It can control environmental pollution, reduce powder waste and packaging costs, and improve product transportation capacity.
The feeding and feeding device adopts variable frequency stepless adjustment control, with a high degree of automation and the ability to control multiple machines by one person. It has the characteristics of low labor intensity and long-term continuous operation.
The main transmission components are made of high-quality alloy materials. The production of stainless steel, titanium, chromium, and other surface alloys greatly improves the wear resistance, corrosion resistance, high temperature resistance, and pressure resistance, making the machine have a longer service life.

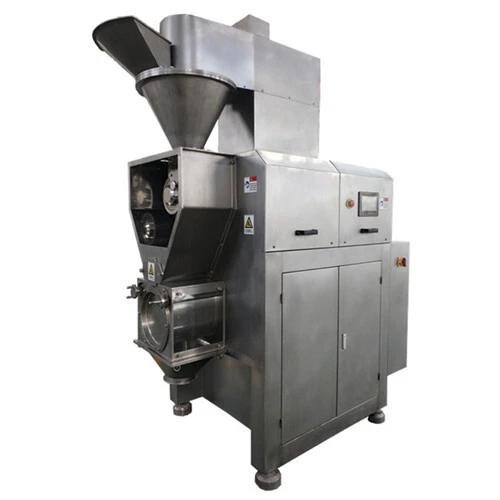

Environment-friendly and clean dry granulator machine
Equipment overview:
This machine uses the crystal water in the material to directly make the powder into a new device. It is widely used in the granulation of pharmaceutical, food, chemical and other industries, especially suitable for the granulation of materials that cannot be solved by the wet method. The granules made by this machine can be compressed into tablets, filled capsules and so on.
Equipment related features:
The advantage is that the structure supports the rollers horizontally and symmetrically, the granulating roller is a double roller, and the attached machine is equipped with a dust collector and a sieving machine. Optional vacuum or screw feeder. This machine is a production model with stable and reliable performance, low noise, and convenient cleaning and maintenance.
model | GK-100 |
Sheet capacity (kg/h) | 120-200 |
Granular capacity (kg/h) | 40-100 |
Particle fineness (mm) | 0.5~4 |
Maximum pressure (KN) | 294 |
Side sealing pressure (KN) | 9.8 |
Feeding motor (KW) | 2.2 |
Roller motor (KW) | 7.5 |
Granulating motor (KW) | 2.2 |
Feeding screw speed | 6~60 |
Rotating speed of pressure roller | 4~25 |
External dimensions of pressure roller (mm) | φ220*100 |
Dimensions (mm) | 1920*1000*2400 |
