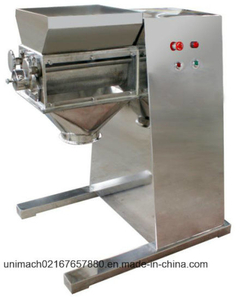

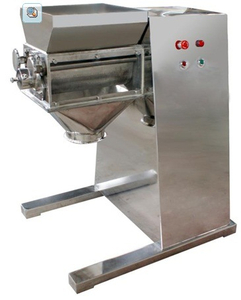

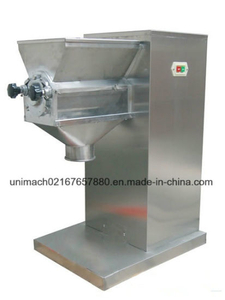

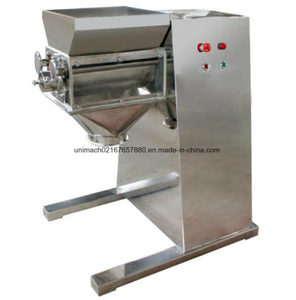

High Quality Oscillating Granulator Machine

Working principle of YK series Oscillating Granulator:

By mechanical transmission, the drum swings back and forth to extrude materials from the screen into particles or crush them into granules.



Characteristics of YK series sOscillating Granulator equipment:

The material contact points are all made of stainless steel material, which has the advantages of beautiful and generous appearance, convenient cleaning, simple operation, and low energy consumption.

    oops...!

    no product data.

    Go to homepage
    Origin
    China
    Trademark
    SUPM
    Name
    Oscillating granulator

    This machine is used for forming the required granules from moist power material, or for crushing dried block stock into granules in required size.

    Its main features:

    The sieve can be removed and remounted easily; Its tension is also adjustable. The rotor also can be removed and cleaned conveniently. The driving mechanism is totally enclosed in the machine body and its lubrication system makes the machine work smoothly.

    YK-160 the speed of its rotor can be adjusted during operation, its surface is painted for universal usage.

    YK-160, a new type is designed in accordance with GMP standard; Its surface is made of high quality stainless steel and looks nice. Especially the metal and stainless steel screen mesh improves the pellets quality.

    Model YK-160 YK-250
    Production capacity 200-300kg/h 200-500kg/h
    Granule's diameter 0.8-5mm 0.8-5mm
    Motor power 3kw 5.5kw
    Drum speed 55r/min 38r/min
    Drum diameter Ø160mm Ø250mm
    Overall dimension 1000*800*1300mm 1050*890*1320mm
    Weight 380kg 550kg



     High Quality Oscillating Granulator Machine 7

    High Quality Oscillating Granulator Machine 8



    Our customer

     KE1PX$_SO]LLORZU3`DH8UW



    Certifications

    [$X~Z{0)[{$PW5F}H666N6M



    Company Information

    RX2]L7{%NOW0`YXF9~)M{_G

    FAQ

     Q1.What's your delivery method?

     A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



    Q2.What products can you provide?

    A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



    Q3. What's the payment terms?

    A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



    Q4.How do you ensure your product quality?

    A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



    Q5:Does the machine power voltage meet buyers' factory power source?

    A5: We can do it as your request.



    Q6: Is it difficult to install the machine ?

    A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

    For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

    You will get videos and instructions about installation of machine from us.
