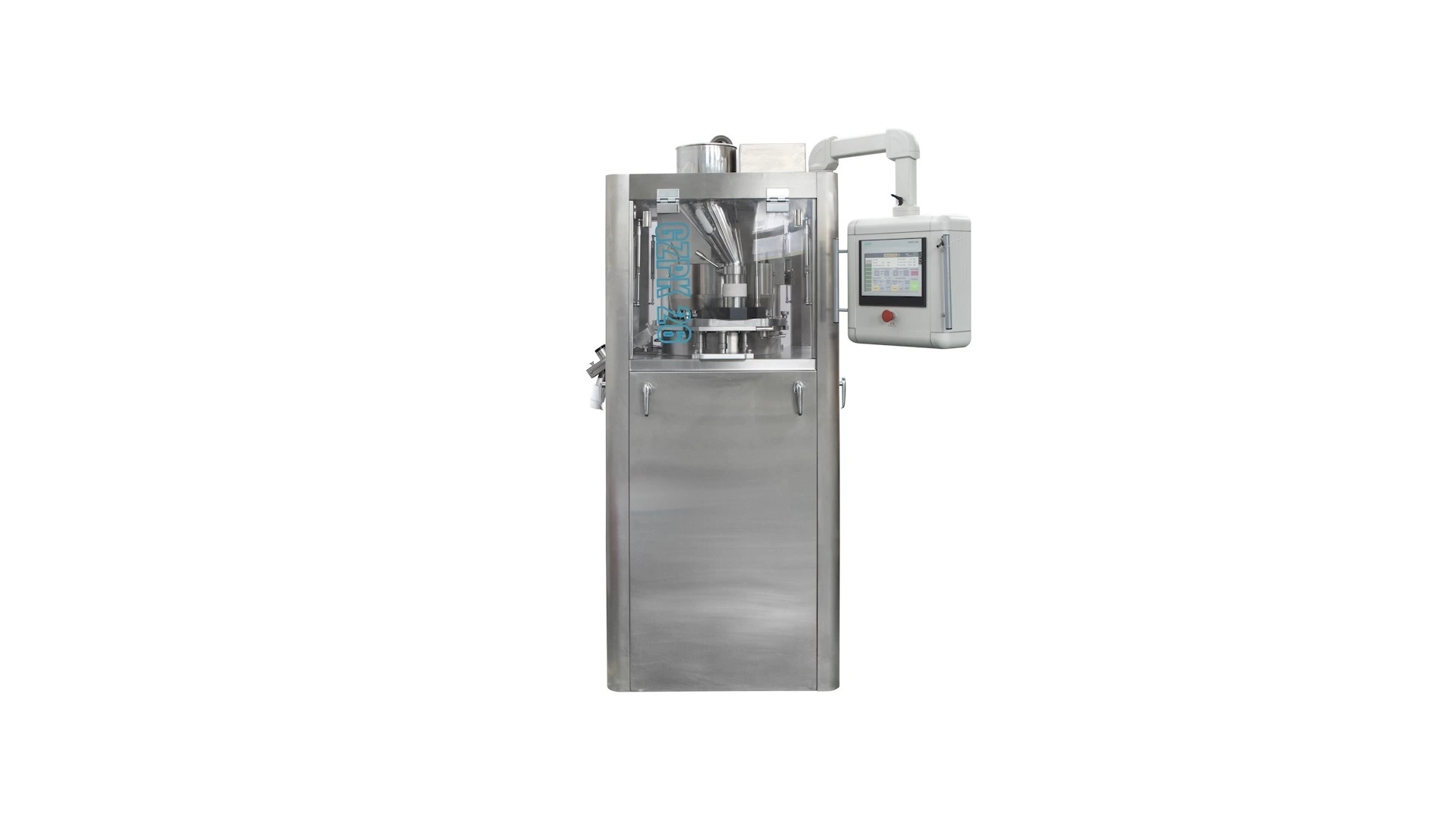

Double High Speed Rotary Tablet Press Machine

Availability:
Quantity:

1: High speed with large quantity punches, double press rollers.
2: Perfect tablet pressing system. The sizes of pre-compression roll and main compression roll are the same.
3: Double impeller type force feeder, improve granules flow-ability and filling performance, ensure filling precision.
4: Tooling track adopt double-side lifting structure.
5: High performance electrical control system
6: Automatic oil & grease central lubrication system.
Application:
This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet. This machine is mainly used in Pharmaceutical, chemistry, foodstuff, electronic industries.
Features:
1: High speed with large quantity punches, double press rollers, suitable for mass production.
2: Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
3: Perfect tableting system, twice compression forming reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
4: Compression compartment is entirely enclosed with transparent glass to prevent contamination.
5: Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
6: Tooling track adopt double-side lifting structure, the punches are balanced stress and wear resistance.
7: High performance electrical control system, ensure each program processing precisely.
8: Automatic oil & grease central lubrication system, ensure the lubrication of pressure rollers, tooling and tracks, extending the working life of the machine.
9: Special oil proof, dust proof and noise proof design.Double High Speed Rotary Tablet Press Machine
Double High Speed Rotary Tablet Press MachineDouble High Speed Rotary Tablet Press Machine

Model GZPK-45 GZPK-55 GZPK-65 GZPK-69
Number of Station 45 55 65 869
Tooling Standard D B BB BBS
Max Main Pressure (KN) 100
Max Pre-pressure (KN) 20
Max Tablet Diameter (mm) Round Tablet 25 18 13 13

Irregular Tablet 25 19 16 16
Max Filling Depth(mm) 20 18 15 15
Max Tablet Thickness (mm) 8 7 6 6
Max Turret Speed (r/min) 60
Max Production Capacity(pcs/h) 324000 396000 468000 496800
Motor Power (KW) 11
Overall size (mm) 1530*1250*1900
Machine Weight (kg) 4300


Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G



FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
