Application

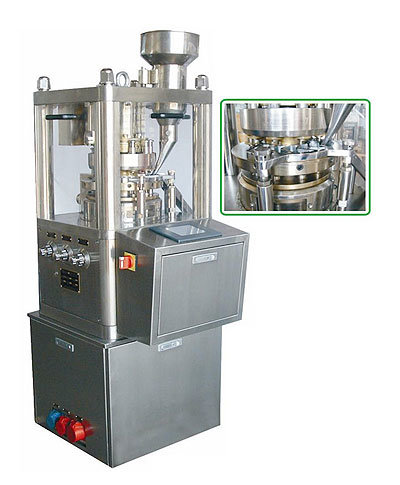

It is a kind of small output tablet press machine mainly suitable for Using in R&D laboratories in pharmceutical factories.
Features
1. The machine is a single-press type.
The outside part of the machine is fully enclosed.
It meets the GMP requirement.
2. Install pre-pressure and main pressure.
3. Main shaft drives and the speed is adjusted by inverter.
4. Advanced turbine retard.
5. There are thrust shaft and lubricate shaft on turret.
6. Digital displaying
A. Show present main pressure (Max. Pressure 60 KN)
B. Show present tablet thickness
C. Show present filling
D. Show present pre-pressure roller position
E. Show present pressure of exit tablets (Max. 10 KN)
F. Show present speed of turret
7. PLC and touch screen, friendly and easy to operate.
8. Protecting and reporting function
A. Protecting and reporting for motor overloading
B. Protecting and reporting for exceed pressure
C. Protecting and reporting for loading and unloading lower punches
.
| Model | ZP8 | ZP10 | ZP14 | ZP17 | ZP21 | ZP23 | |
| Number of Stations | 8 | 10 | 14 | 17 | 21 | 23 | |
| Tooling Standard | D | D | B | B | BB | BBS | |
| Max Main Pressure (KN) | 60 | ||||||
| Max Pre-pressure (KN) | 10 | ||||||
| Max Tablet Diameter (mm) | round tablet | 25 | 25 | 18 | 18 | 13 | 11 |
| irregular tablet | 25 | 25 | 19 | 19 | 16 | 13 | |
| Max Filling Depth (mm) | 16 | ||||||
| Max Tablet Thickness (mm) | 6 | ||||||
| Max Turret Speed (r/min) | 30 | ||||||
| Max Production Capacity (pcs/h) | 14400 | 18000 | 25200 | 30600 | 37800 | 41400 | |
| Motor Power (kw) | 1.1 | ||||||
| Overall Size (mm) | 700×580×1630 | ||||||
| Machine Weight (kg) | 650 | ||||||
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
