Product Description
Main Application:

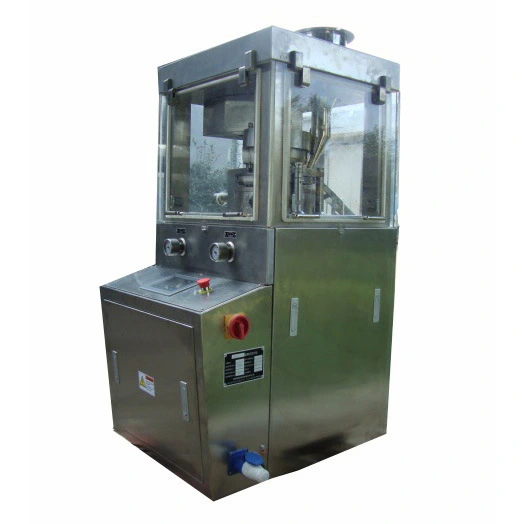

1. This machine is single-press type, continuous automatic tablet press for pressing granular raw materials into tablet. It is mainly used in pharmaceutical industry and also the chemical, food, electronic industry.
2. The outside part of machine is full-enclosed, the material of the cover and the inside table face is stainless steel. The turret face is specially disposed keeping the uster of the face and prevent the cross pollution, meeting the GMP requirements.
3. It has the transparent windows so that press condition can be observed clearly and the window can be opened cleaning and maintain.
4. The lay-out of all the controllers and the operate parts is reasonable.
5. The speed adjustment of the driver is controlled by the frequency.
6. All the drive devices are located inside the machine, keep the parts clean.
Features
1. Max. Pressure 80KN
2. Max. Diameter. Of tablet: 25mm
3. Automatic controlled by PLC and touch screen.
4. Display pressure, production capacity and speed.
5. It is suitable for laboratory and small batch production.
| Model | ZP-15D |
| Dies(sets) | 15 |
| Max.pressure (KN) | 80 |
| Max. dia.of tablet(mm) | 25 |
| Max.depth of filling(mm) | 15 |
| Max.thickness of tablet(mm) | 6 |
| Turrent speed(r/min) | 0-30 |
| Max. production capacity(pc/h) | 27,000 |
| Motor(kw) | 2.2 |
| Outline dim.(mm) | 820*650*1550 |
| Weight(kg) | 1000 |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
