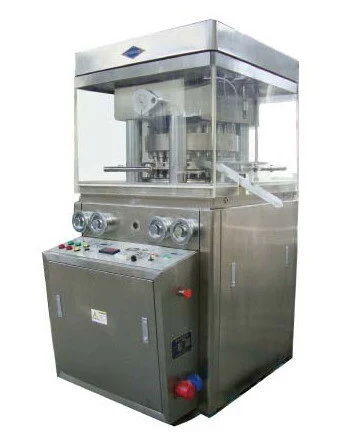

Rotary Tablet Press (ZP-23/25/27)


Main application
The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription. It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, electronics. (Note: When manufacturing double color piece, it only need replacing components and adding power absorbing apparatus which greatly lowers the cost and raises profit.

2. Features
A. Machine meet GMP and made in stainless steel. The inner tablet press surface already be special treated, which could keep surface luster and prevent from being polluted crossly.
B. Equipped with transparent window which could help to observe the status of pressing tablet. Transparent window could be fully opened, Machine easy to clean and Maintenance. All monitors and operating components work well together.
C. Machine speed could be adjusted.
D. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
E. Ransmitting system is sealed in the oil box under the working area, which work separately. No pollution and easy to send out heat and resist grinding.
F. A power suction unit is attached to take the residual power during operation, so that blockage powder can be collected and be reused.Rotary Tablet Press (ZP-23/25/27)
Rotary Tablet Press (ZP-23/25/27)Rotary Tablet Press (ZP-23/25/27)

TYPE ZP-23 ZP-25 ZP-27
Dies(sets) 23 25 27
Max.pressure(Kn) 100 100 100
Max.Dia.of Tablet(mm) 45 40 30
Max.Thickness of Tablet(mm) 15 15 15
Max.Depth of fill(mm) 30 30 30
Max.output of one-layer tablets(pcs/h) 69000 75000 81000
Rotational diameter(mm) 445 445 445
Rotational speed of revolving table(r/min) 10-25 10-25 10-25
Diameter of middle mould(mm) 52 52 52
Highness of middle mould(mm) 38 38 38
Length of up and down punch pole(mm) 45 45 45
Length of up punch pole(mm) 175 175 175
Length of down punch pole(mm) 180 180 180
Overall dimensions(mm) 1000 X 1250 X 1900 1000 X 1250 X 1900 1000 X 1250 X 1900
Net weight(kg) 3200 3200 3200
Motor model YU132M4A YU132M4A YU132M4A
Motor(kW) 7.5 7.5 7.5
Voltage(V) 380 380 380

Packaging & Shipping

 1.Nomally shipping steps:


2.Our packing and shipping:


Our Services


     Pre-Sales Service:


         * Inquiry and consulting support.


         *Quickly reaction.


          *Factory inspection available anytime.



      After-Sales Service:


         *Prompt technical support


        *Engineers available to service machinery overseas


        *Installation &commissioning,good training for customers.



Our customer






Company Information



 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.


Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.


Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.


Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.


Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.


Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
